Activity :More knowledge anout C purlin
May 07, 2018
C purin classification:
Galvanized C purlin, hot-dip galvanized cable tray C purlin, glass card slot C purlin, glass curtain wall C purlin, cableway C purlin, reinforced C purlin, double-clamped C purlin, unilateral C purlinl, manual forklift C purlin, Unequal C purlin, straight-edge C-section steel, bevel-edged C-section steel, inner-rolled C-section steel, inner-inclined C-section steel, roof (wall) purlin C-section steel, automobile profile C-section steel, highway column C-section steel, solar bracket C purlin (21-80 series), template supporting C purlin, precision C purlin for equipment and so on.
C purlin is made by cold-bending hot-rolled plate. The thin wall has light weight, excellent cross-section performance and high strength. Compared with the traditional channel steel, the same strength can save 30% of the material.
C purlin scope of application
C purlin is widely used in steel structure building purlins, wall beams, but also can be self-assembled into a lightweight truss, brackets and other building components. In addition, it can also be used for columns, beams and arms in mechanical light manufacturing.
C purlin specifications
C purlins are divided into five types according to height: 80, 100, 120, 140, and 160. The length can be determined according to the engineering design. However, considering the conditions of transportation and installation, the total length is generally not more than 12 meters.
C purlin processing

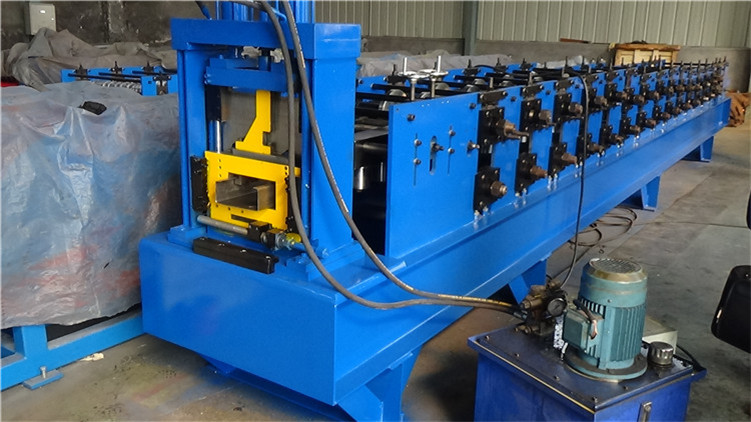

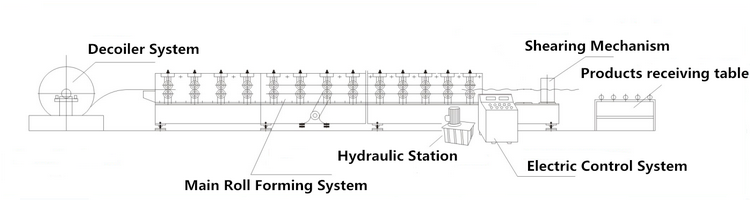

C purlin is automatically formed by the C purlin forming machine. The C purlin forming machine can automatically complete the forming process of the C purlin according to the given size of the C purlin.
