u channel roll forming machine

Descirption of our u channel roll forming machine:

The u channel roll forming machine we produced are widely used in all around the world. The thickness of the material used for the u channel roll forming machine are normally below 1.2 mm. Our machine widely used in the light guage or light weight steel building systems.

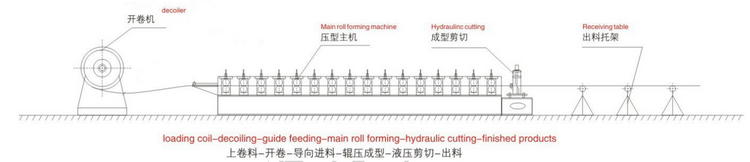

A u channel roll forming machine usually consists of manual decoiler, a feeding guide unit, a punching tool, a roll forming unit, a cutting unit, a transimission unit, a hydraulic unit, a control unit, and runout tables. Under PLC control system, this u channel roll forming machine can automatically produces max 25 meters metal c studs or u track per minute.


This u channel roll forming machine is also can be designed for in line punching, punching and cutting in one time. Main motor use AC servo motor with inverter, producing in line speed: 60 meter per minute, quick or slow speed can be adjusted freely. After roll forming, automatic in line punching and cutting continuously. Cutting length: from 3 meter to 6 meter or more, length tolerance: within ±1mm. Automatic products piling table is special designed for high speed production capacity and reduce the production cost, create more profit for the customers.

In modern buildings, people tend to use steel because steel is light weight, recyclable, costs less money and time, compared to traditional clays, stones or bricks. In a lightweight or light gauge steel building, most of building materials are made of steel, and most of these steel building materials are manufactured by roll forming machines. One of which is light steel roll forming machine that has been designed for the continuous and automatic production of metal c stud and u track applied for both exterior and partition walls in both individual and industrial buildings.

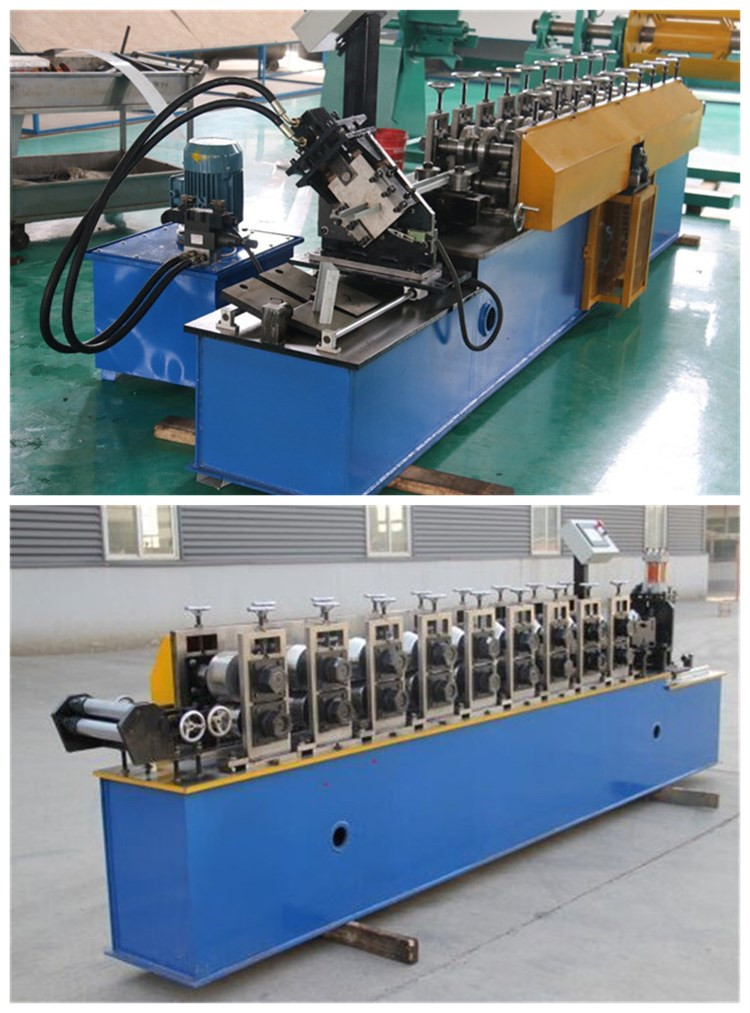

Pictures of our machine
