Features:

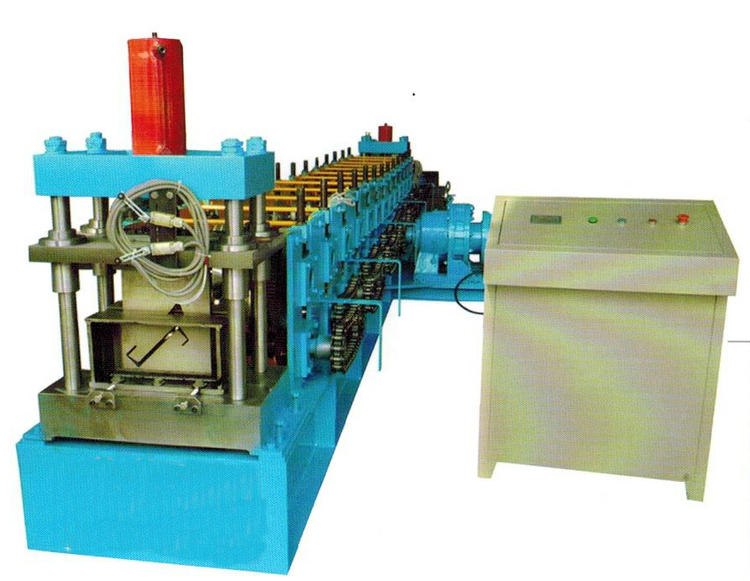

Z purlin forming machinehas many advantages such as high compressive strength and good straightness, highly automatic, such as auto cutting and punching,easy installation, which has helped reduce the labor force.

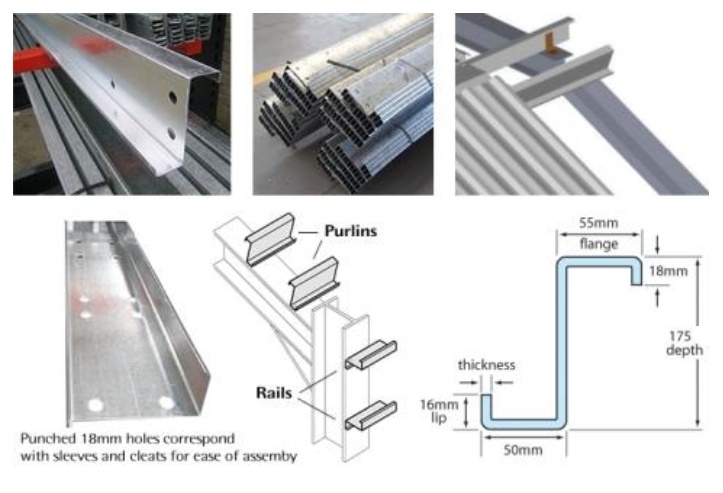

Z Purlins are made using cold-formed or rolled sheets for supporting roof. These purlins are extensively used in huge roofing solutions such as godowns, workshops, industrials sheds and many more. Z galvanized purlin can be overlapped end-to-end which makes it ideal for long runs in very large roofing applications, We make these purlins available to the clients in different specifications, as per their precise requirements.

Technical Parameters:
Raw material: Q235 Galvanized steel coil or Cold rolled steel
Yield strength of raw materials: 235MPA-345MPA
Material thickness: 1.0-3.0mm
Roll forming speed: 0-12m/min (not including punching and cutting)
Material of Roller: Gcr15 quenching treatment 58-60°
Shaft Material: High grade 45# steel with tempering
Drive type: chain
Motor Power:  18 KW
Material of punching dies:  Gcr12 quenched
Material of cutting dies:  Gcr12Mov quenching treatment 58-60°
Hydraulic power for cutting:  5.5KW
Control system: Delta PLC, Inverter and Omron encoder
