Features:

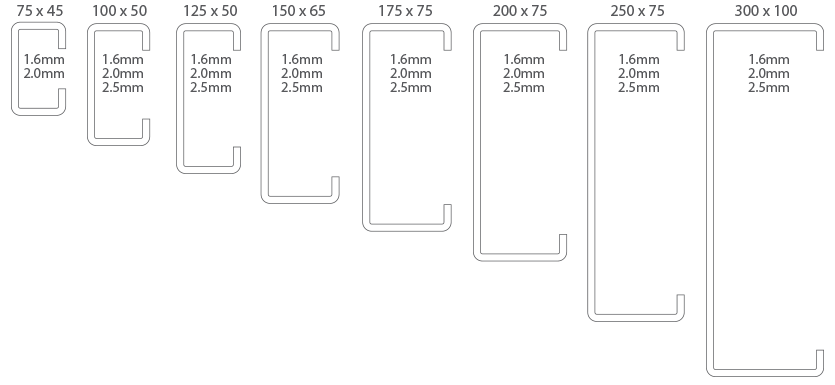

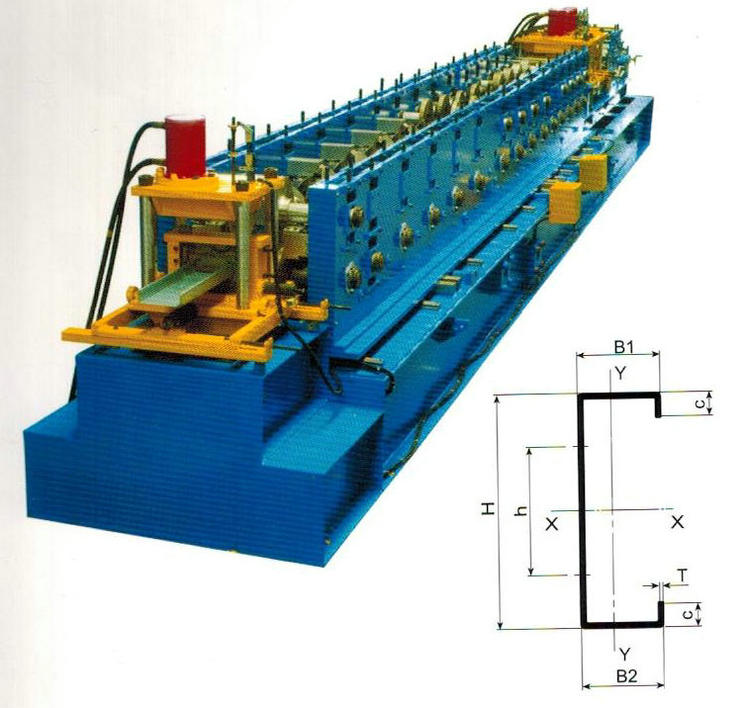

Auto-change c purlin roll forming machine is designed for the purpose of producing different sizes of c purlins. For different sizes, it only need to remove one side of machine along the linear and then adjust the cutter.
It adopts chain driving methods. PLC control system with Delta Panel Touch, through which input size of flange height and web width.
When required, punching device is be available.
C Z purlin forming machine is the best choice for clients who want to produce both C purlin and Z purlin.

What is the difference between fully automatic c purlin roll forming machine and ordinary c purlin roll forming machine?

Automatic c purlin roll forming machine can automatically cut length, automatic punching, high degree of automation, quick installation.

Ordinary c purlin roll forming machine needs manually change spacers.

Fully automatic c purlin roll forming machine : after fixed data input, fixed-length cutting, higher precision, such as CNC input bottom 80-300, waist height 40-150, small edge 5-25. The number is determined, the input cannot be fixed, and the production efficiency can be further improved. The traditional c purlin roll forming machine has a long replacement time and serious material waste. Therefore, automatic c purlin roll forming machine is more and more popular.

Technical Parameters:

Raw material: Q235 Galvanized steel coil or Cold rolled steel
Yield strength of raw materials: 235MPA-345MPA
Material thickness: 1.0-3.0mm
Roll forming speed: 0-12m/min (not including punching and cutting)
Material of Roller: Gcr15 quenching treatment 58-60°
Shaft Material: High grade 45# steel with tempering
Motor Power: 15 KW
Material of punching dies: Gcr12 quenched
Material of cutting dies: Gcr12Mov quenching treatment 58-60°
Hydraulic power for cutting: 5.5KW
Control system: Delta PLC, Inverter and Omron encoder
