Features:

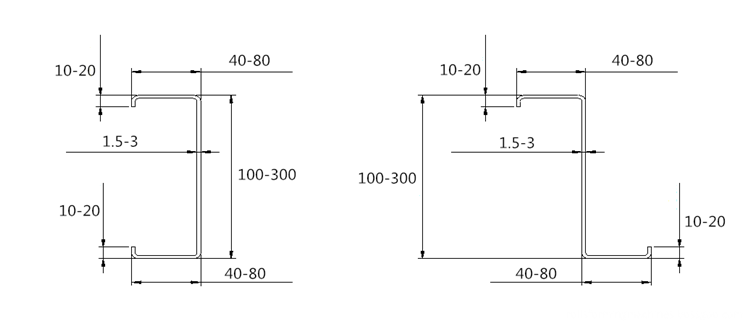

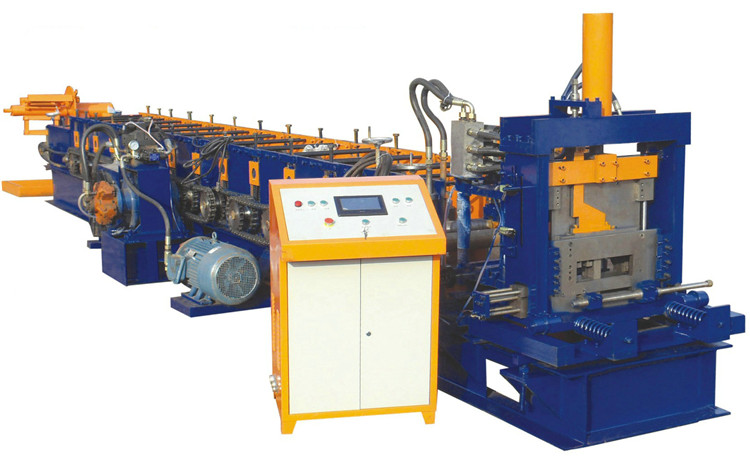

C Z purlin forming machine adopts a special structure.
Change from C to Z is very quickly without dismantle any parts, The forming tooling is simply unclamped (two bolts), rotated through 180 degree, and re-tightened. The form tooling is unclamped, slid into the correct position by PLC control. No special tools, no spacer changed.
Input data in touch screen can adjust any size automatically, by motor driving stations moving accurately on linear guiderail with help of encoder and limit switch.

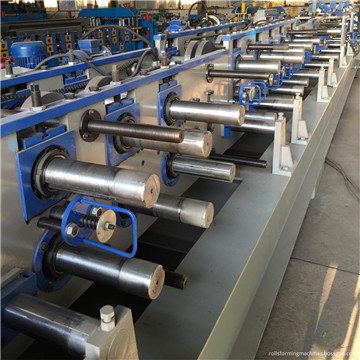

The Roll tools are carved in highly precise CNC machines which gives it best quality and long life.

Technical Parameters:
Raw material: Q235 Galvanized steel coil or Cold rolled steel
Yield strength of raw materials: 235MPA-345MPA
Material thickness: 1.0-3.0mm
Roll forming speed: 8-12m/min
Material of Roller: Gcr15 quenching treatment 58-60°
Shaft Material: High grade 45# steel with tempering
Drive type: Chain
Motor Power: 20 KW

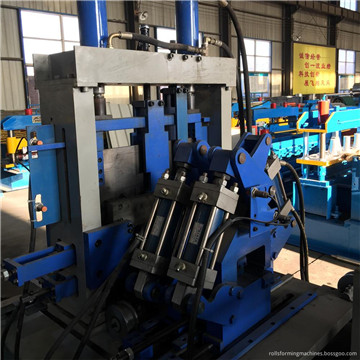

Material of punching dies:  Gcr12 quenched
Material of cutting dies:  Gcr12Mov quenching treatment 58-60°
Hydraulic power for cutting:  5.5KW
Control system: Delta PLC, Inverter and Omron encoder
