New condition metal sheif step beam making machinery roll forming machine for storage

The step beam roll forming machine is provide by our professional factory with high precision and competitive price.

This kind of machine is a set of production line that includs decoiler, leveling device, forming system, and cutting system,etc.

Working process:

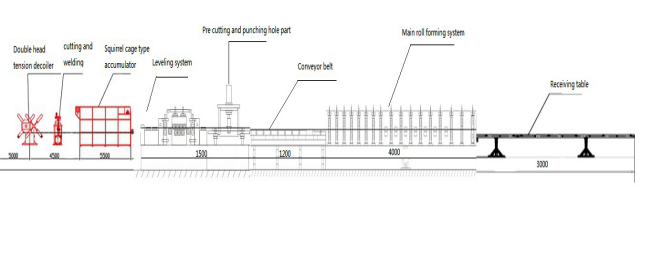

Uncoiling---leveling device---main roll former---straightening---welded system---cutting system---product collect table

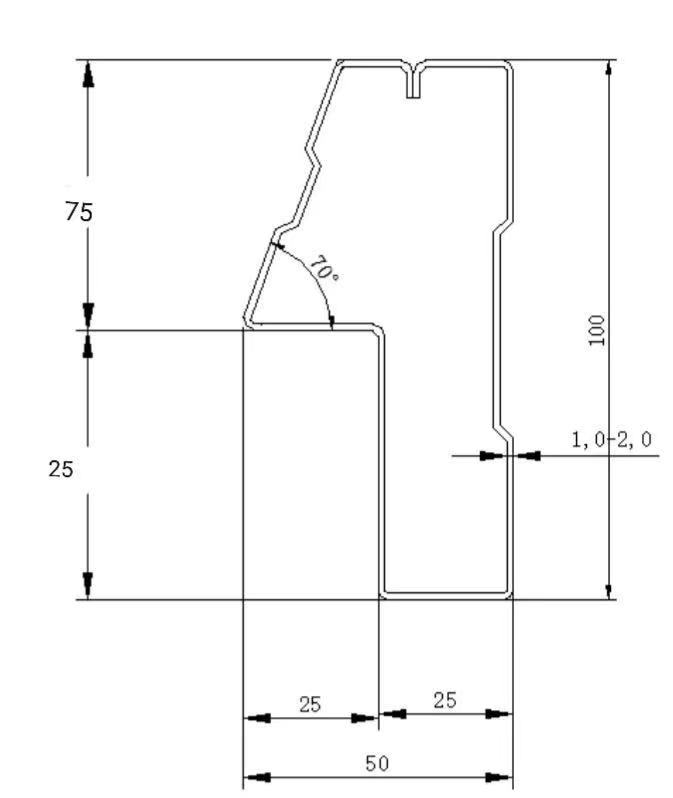

Profile drawing:

Technical parameter:

Series	Detail	Parameter
Product	Raw material	GI or CR sheet
	Material thickness	1-2mm

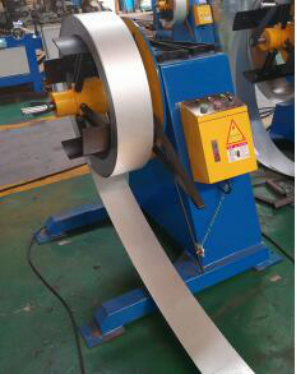

Decoiler	Work type	Manual
	Loading capacity	3 Tons
	Coil inner diameter	450-550 mm (adjustable)

Series	Detail	Parameter

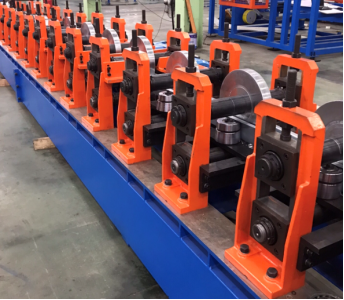

Main roll former	Rolling shaft material	45# steel with tempering treatment
	Shaft diameter	80mm
	Roller material	GCr15
	Rolling station	26 stations
	Work speed	8m/min
	Machine frame	Casting vertical grinding
	Motor brand	Siements
	Work power	22 KW(two motor driving)
	Transmission	By gear drive with universal joint

Series	Detail	Parameter

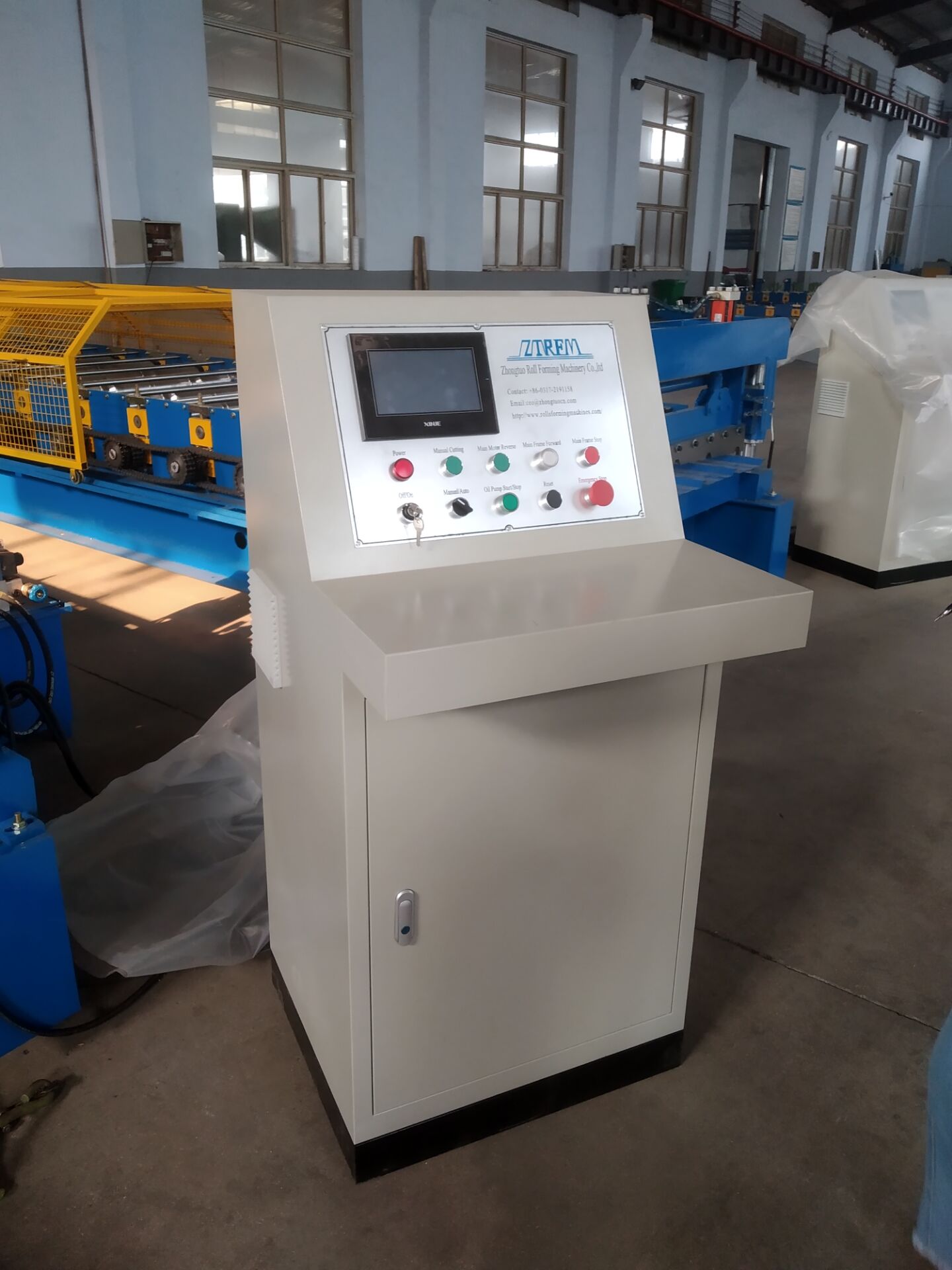

PLC system	Frequency brand	Delta
	PLC brand	Delta
	Screen type	Touch screen with button

FAQ:

1. How about engineers service overseas?

A:Engineers available to service machinery overseas;

2. How about the machines for testing?

A:Warmly welcome to our factory supervise and inspect anytime;

B:We will arrange the machine test in our factory before the shipment.

C:If the customer can't come, we will provide the machine running video and photos to them.

3. Are you trading company or manufacturer ?

A:We are a 18 years of factory that specializing in roll forming machines, all machine is made by ourselves and we can provide customize service according to your requirement.
