Factory Price Steel Angle Iron Roll Forming Machine

What is the application of angle iron roll forming machine?

Angle iron roll forming machine is mainly producing angle iron. As we know, angle is widely used in large span factory building, warehouse, office buildings, villas, roof, cold storage, air purification room, stores, kiosks, and temporary housing.

What is the specification of angle iron roll forming machine?

Item	Specification
name	angle iron roll forming machine
Processing material	color steel,GI,PPGI
Processing thickness	0.4-0.8 mm
Diameter of shaft	Φ40mm
Electric tension	as the customer's requirements
Roller	High grade 45# forged steel (plated chrome plating on surface)
coil thickness	0.05mm
Frame thickness	25mm
Transmission	By gear
Hydraulic cutting	Controlled by PLC
PLC	DELTA(TAIWAN)
Material of blades	Cr 12, quenching 58-62℃
Forming speed	40m/min
roller station	to the finnal design

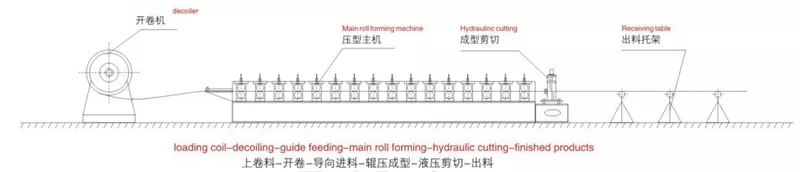

process flow diagram of wall panel cold molding mill

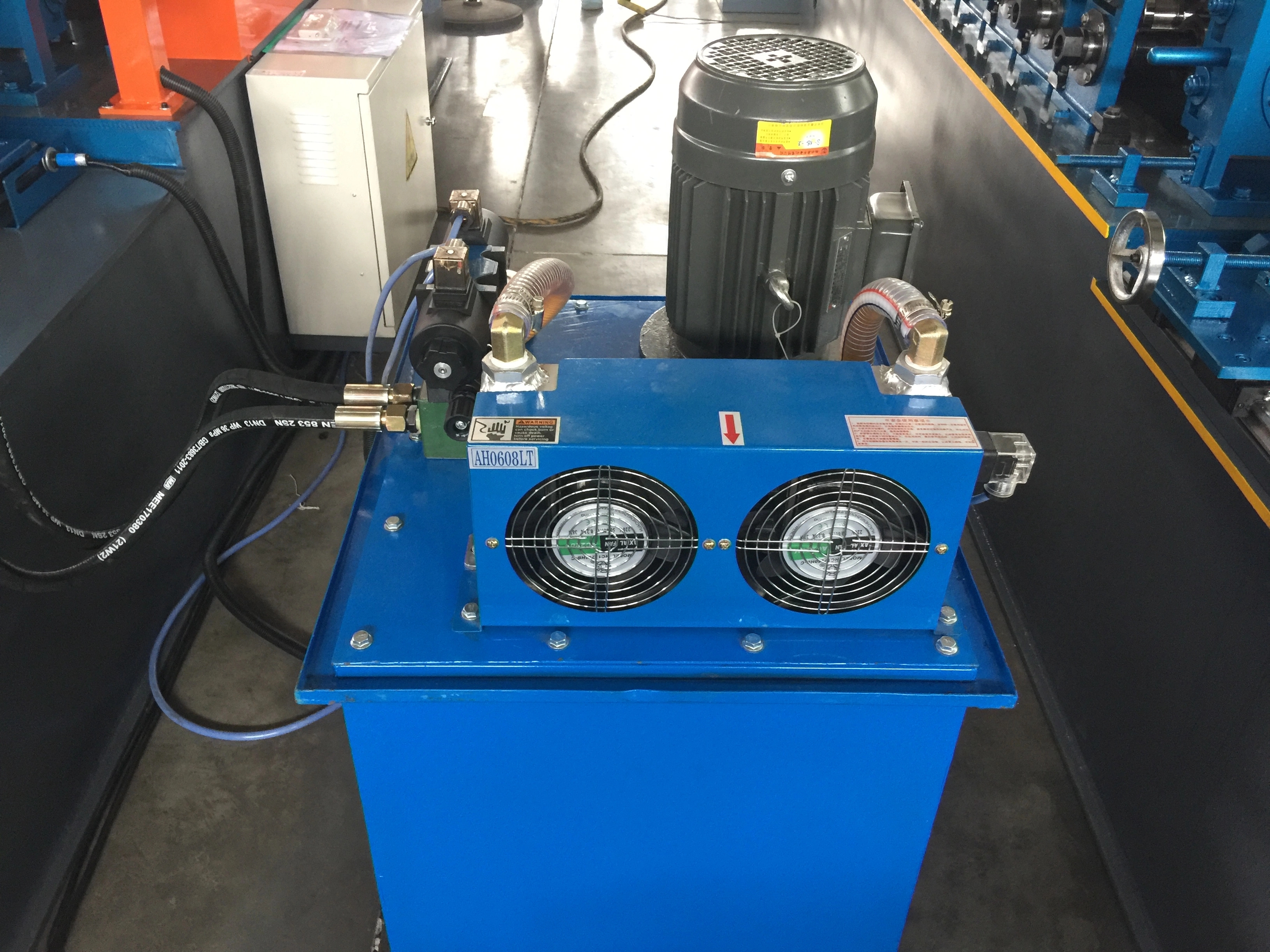

Details of angle iron roll forming machine

We also have other kind of light keel roll forming machine.It can produce C/U light keel ,furring channel ,small Z angle and other kinds of light keel.

We also have other kind of light leel roll forming machinee.It can produce C/U light keel ,furring channel ,small Z angle and other kinds of light keel.
