combined Stud and Track Roll Forming Machine

Features:
As we know, C stud and U track are two important accessaries for the ceiling construction. Most customers who buy C stud roll forming machine will also buy U track roll forming machine.

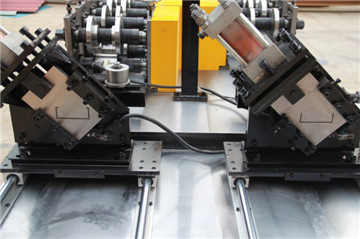

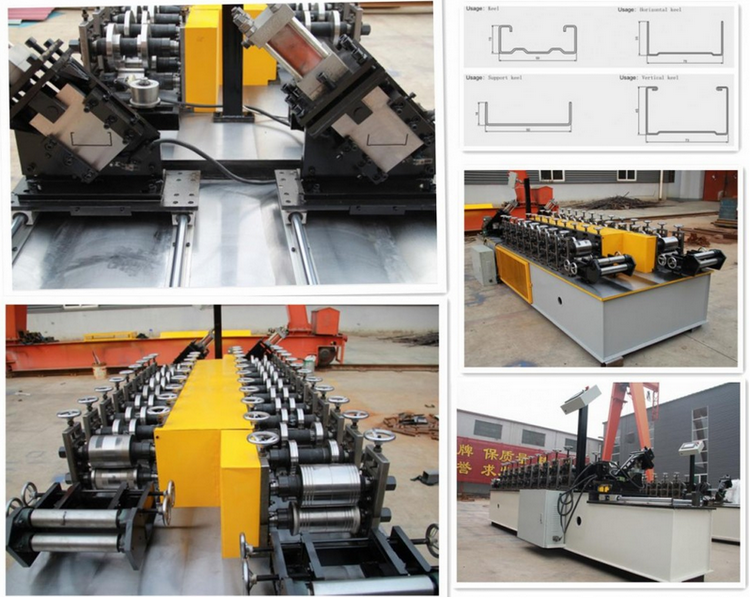

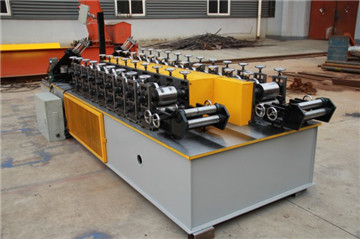

In order to meet this requirements we develop combined Stud and Track Roll Forming Machine . This combined Stud and Track Roll Forming Machine has two separated production lines.Each line is consisted of manual decoiler, main forming machine, PLC control, hydraulic station and cutting part.It can help you to save space and raise productivity. And as the two line are separated, you can choose from C s tud, U track ,furring channel and wall angle. Any two of them.
In addition,the cutting system can be designed as non stopping hydraulic cutting. Machine normal speed is 25 meters/min, high speed is as 45-50 meters/min.
Technical Parameters:
Raw material: Galvanized steel coil
Material thickness: 0.3-0.8mm
Roll forming speed: 20-25 m/min
Material of Roller: GCr12MoV quenching treatment 58-60°
Shaft Material: High grade 45# steel with tempering
Shaft diameter：40mm
Drive type: gear
Material of punching dies: Gcr12 quenched
Material of cutting dies: Gcr12Mov quenching treatment 58-60°
Control system: Delta PLC, Inverter and Omron encoder
