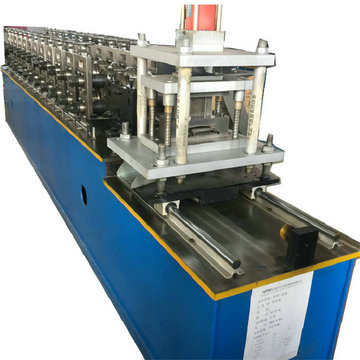

roller shutter slats forming machine

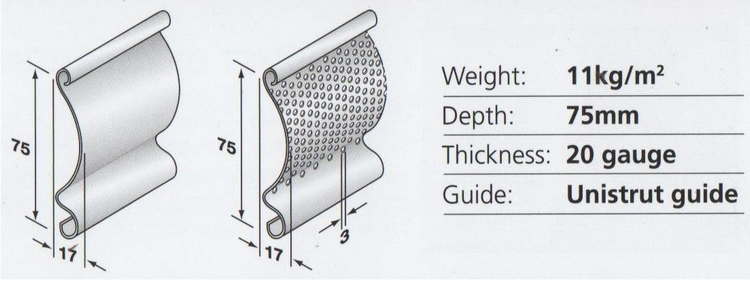

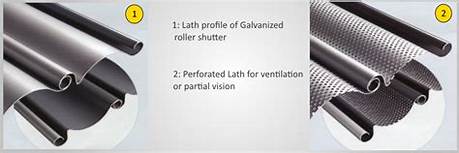

Our roller shutter slats forming machine can produce many kinds of shutter door slats. When maximum security and airflow are a must,fenestrated shutter door is needed. It is ideal for parking structures, container docks or any application where security and airflow needed.

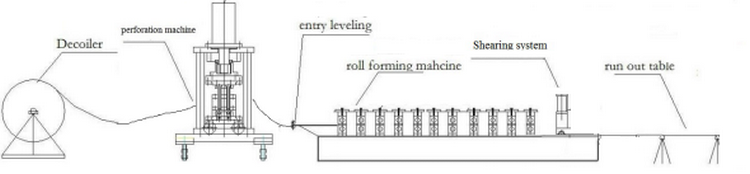

Perforated roller shutter slats forming machine is consisted of decoiler, perforation device, main forming machine, hydraulic station, PLC control and runout table. Perforation device is a separated one, when you don't need holes, just remove it.
features of perforated roller shutter slats forming machine
1.Based on the old roller shutter slats forming machine, you need only add one more punching machine.
2.The holes sizes could be changed.
3.The punching holes could be removed or with as you wish, it will not effect the machine working efficiency.
4. Holes can be put in different positions.So the speed of punching part decides the machine speed.
1. Specifications of roller shutter slats forming machine
|
Decoiler |
a. Coil inner diameter: 450-550mm
b. Coil max width: 300mm |
|

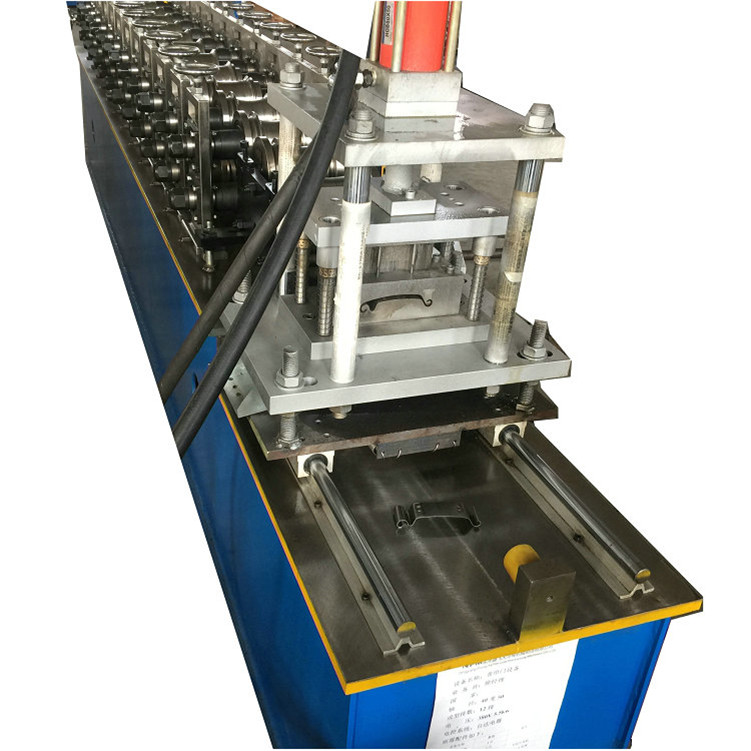

perforation machine
|
a.Material of mold: Gcr12MoV quenched b.Power: 3kw c.Punch speed:12m/min |
|

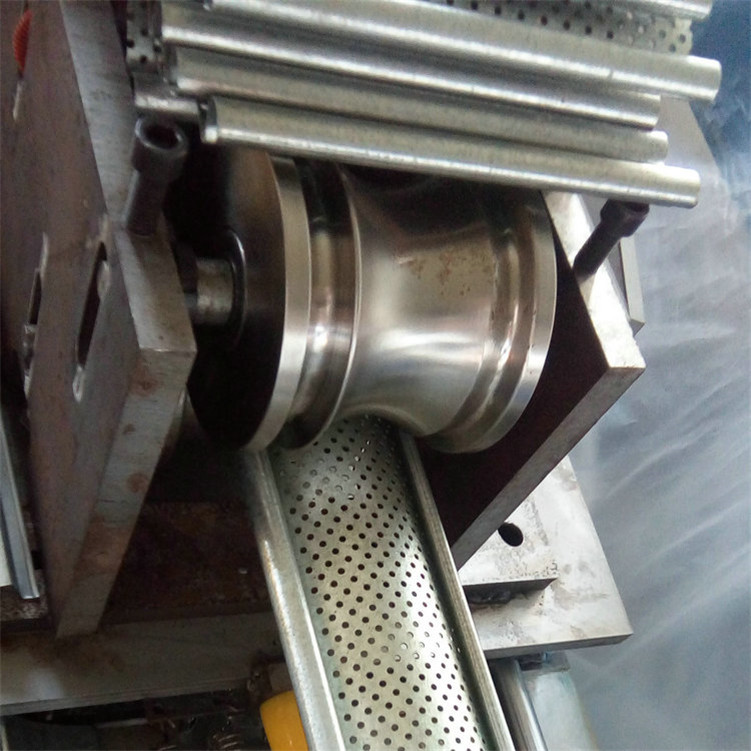

Roll forming machine |
a. Number of forming steps: 12 stations b. Shaft material: 45# steel with quenched treatment, precision machined, c. Roller material: bearing steel with quenched treatment d. Transport: by gear
e. Forming speed: 5-15m/min |
|
Shearing system |
a.The material of blade: Cr12Mov,Hardening HRC 58-62℃ b.Length Tolerance:3m±1.0mm C. Power supply: Hydraulic station |
|
Hydraulic station |
a. Hydraulic motor Power:3kw c.Hydraulic pressure : 12Mpa |
|
PLC station |
PLC control system, we will take Delta . You can set the cutting length in the PLC. |
