Nowadays,steel deck roll forming machine is widely used in power plants, power equipment companies, auto showrooms, steel structure plants, cement warehouses, steel structure offices, airport terminal buildings, sports Stadiums and other steel structures.The steel floor deck formwork is to weld the upper and lower longitudinal reinforcements in the cast-in-place concrete floor slab and the small-diameter rebars formed by bending to form a small truss with a certain rigidity and capable of bearing the load, and then the leg and the ribs of the small truss. Only 2mm high, plate thickness of 0.4 ~ 0.6mm pressed steel plate welding. All of these processing operations are done in the factory using automated production lines.

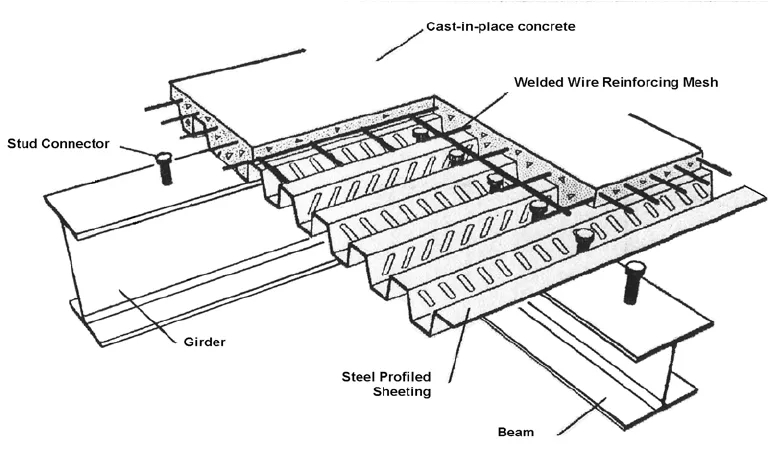

During the construction, the pressed steel decks underneath are fastened to each other to support the concrete, and the strength and rigidity are provided by the reinforced truss. In the use stage, the reinforced truss is the reinforcement of the concrete floor to withstand the use load. Therefore, it has the advantage of rapid construction of profiled steel plates or non-composite floors, but it also has the advantages of large in-situ caster stiffness and good anti-seismic performance, and has broad application prospects.

Compared with the traditional cast-in-situ floor decks, from the analysis of the total cost of steel floor decks, due to the reduction of 60% to 70% on-site lashing workload, can significantly shorten the construction period, reduce labor consumption, machinery consumption, thereby reducing the overall cost of the project; Because there is no need for scaffolding and bottom mold support, buildings can be constructed and cross-processed simultaneously in multiple layers, which can greatly increase construction efficiency.

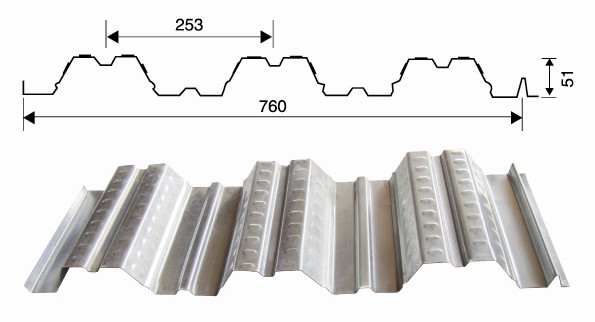

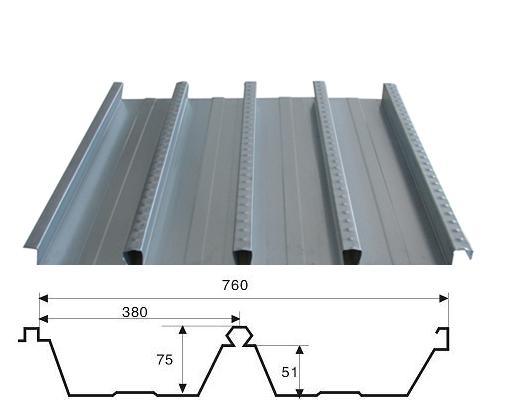

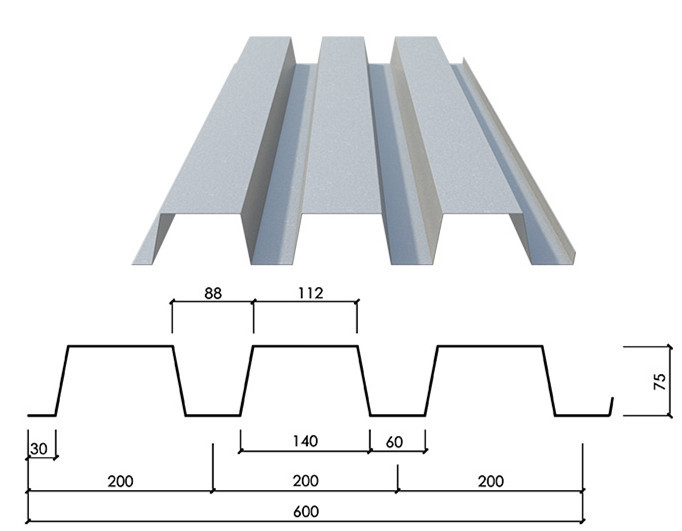

Attached are some popular drawings for steel floor deck.
