highway protection w beam roll forming machine

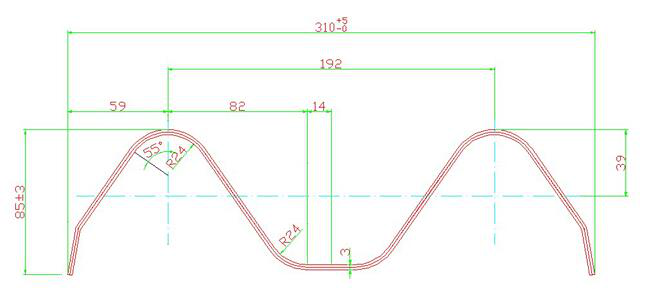

The following is for two waves w beam roll forming machine. It is suitable for HR steel with thickneww of 2.5-3.5mm.As these machines seamlessly produce the best quality highway guard rails which last longer and has superior design for both 2 Wave and 3 Wave machines.These guardrail roll forming machine is compact than the other unnecessary huge and bulky machines which consumes more power, time and money.The Machine’s parts are all made with precision and experienced personals, with optimum quality roll tools so you never have to worry about the quality.

technical parameters of guardrail roll forming machine

Series	Details	Parameter
Material	Raw material	HR steel
Material	Material thickness	2.5-3.5mm

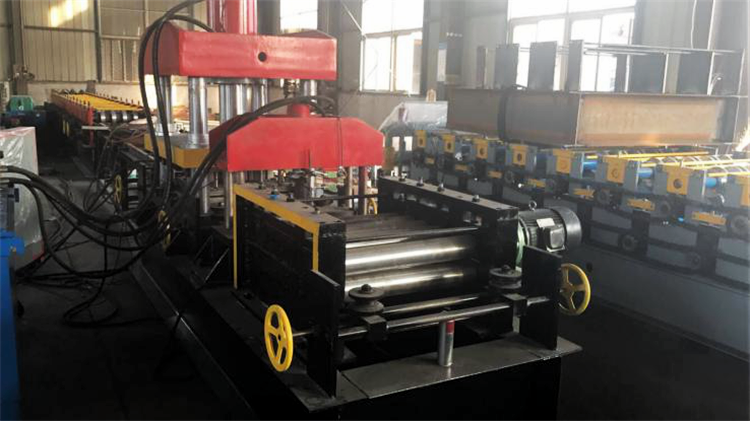

Roll forming machine	Feeding&leveling unit	Placed on the machine by seller
		Shaft numbers: 9pcs
		Shaft diameter:80mm
		Shaft material: 45# steel
	Rolling shaft material	45# STEEL
	Shaft diameter	90mm
	Roller material	GB-Cr15

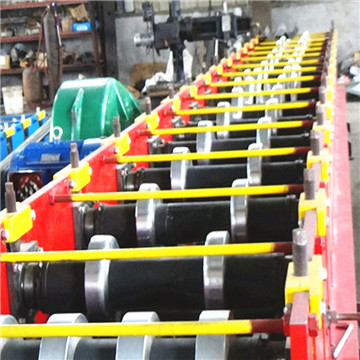

	Rolling station	15 stations
	Work speed	6-10m/min
	Machine frame	Steel plate welded
	Machine body	400# H steel welded
	Work power	22kw

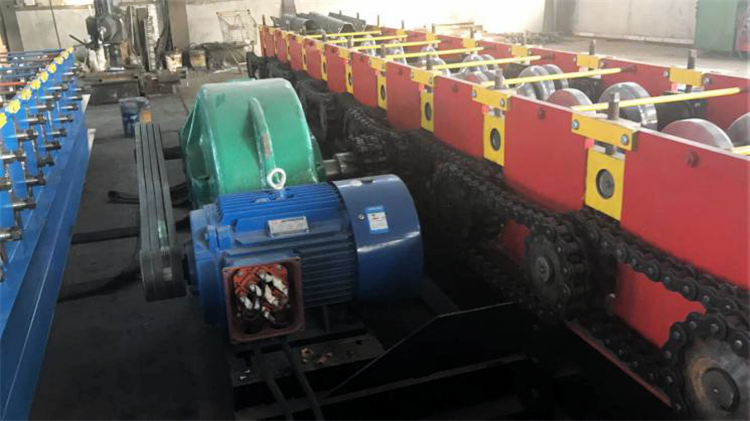

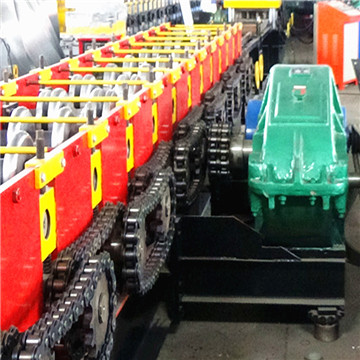

	Transmission	By Chains
Control system	Frequency brand	Delta from Taiwan
	PLC brand	Delta from Taiwan
	Screen type	Touch screen
	Screen language	English/Chinese/Arabic/French
	Pre-cut&punch command	Yes
	Profile length set-up	Yes
	Batch quantity program	Yes
Hydraulic system	Work type	Hydraulic
	Driving method	By Cylinder
	Motor power	22kw
	Cutter material	GB-Cr12

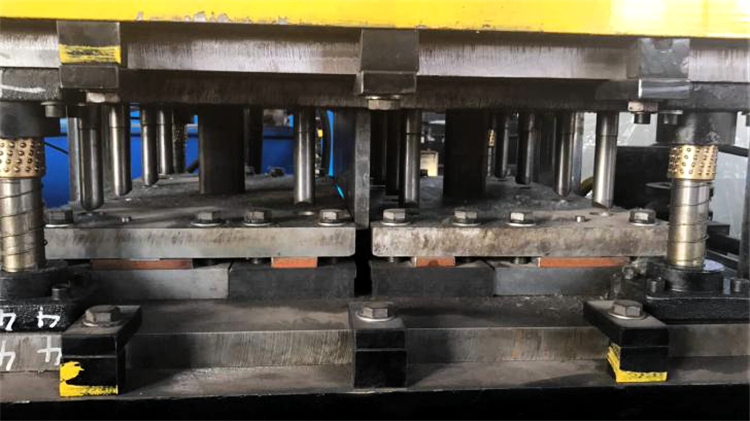

	Mold material	GB-Cr12
	Cutting length tolerance	±1.5mm

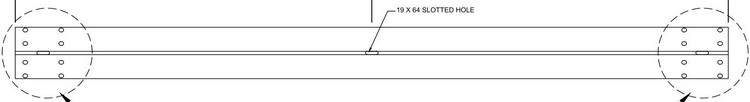

	Hole punch location	Please take the drawing for reference
