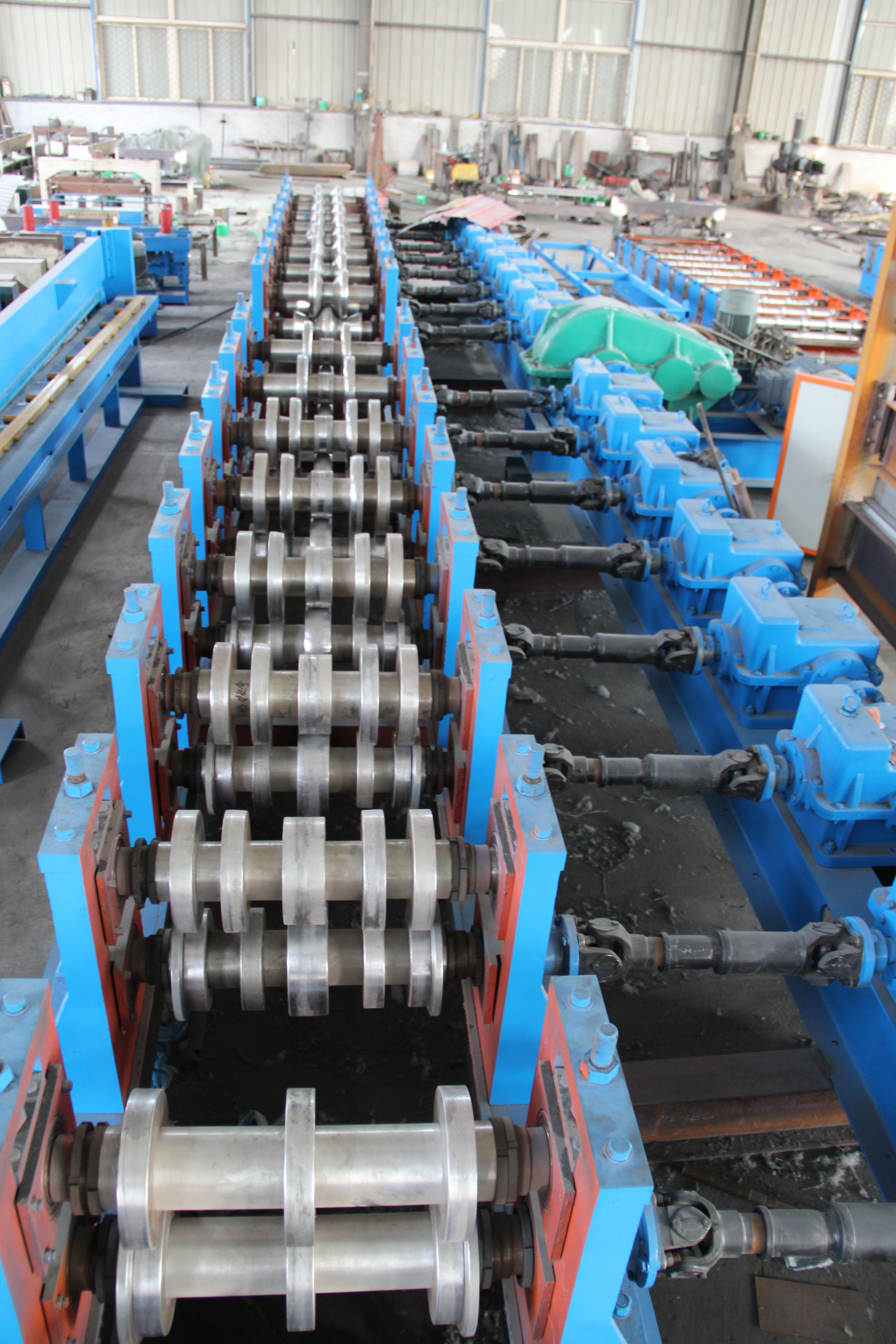

OEM high precision crash barrier highway guardrail roll forming machine

This crash barrier highway guardrail roll forming machine is especially used to producing the highway guardrail The whole line adopts PLC controlling system and AV inverter speed adjustment, it can run full automatically. It`s the essential equipment in the steel structure industry and road transportation industry.

For the crash barrier highway guardrail roll forming machine we have the two waves and three waves highway guardrail roll forming machine. Each type we have the standard profile drawing and punching sketch. Steel guardrails provide a visual and physical barrier between traffic and work areas. It is used for protection against accidents due to lift trucks or other mobile equipment in dock areas, aisles, around special equipment, or offices.

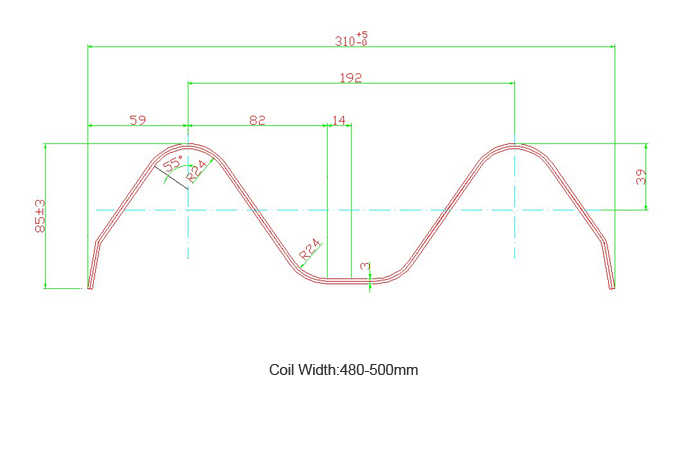

Profile frawing of the crash barrier highway guardrail roll forming machine

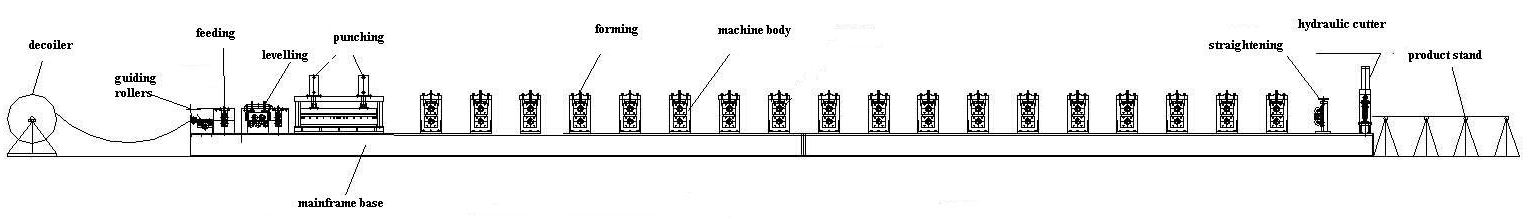

Processing flow of W beam highway guardrail roll forming machine

Components of crash barrier highway guardrail roll forming machine

No.	Name	Unit	Quantity
1	5T decoiler	set	1
2	Guiding device	set	1
3	Leveling device	set	1
4	Punching system	set	1
5	Main roll former	set	1
6	PLC control station	set	1
7	Hydraulic oil pump	set	1
8	Cutting system	set	1
9	stacker	set	1

Parameters crash barrier highway guardrail roll forming machine

Series	Details	Parameter
Roll forming machine	Guiding&leveling device	Placed on the machine by seller
		Shaft numbers:11pcs
		Shaft diameter:80mm
		Shaft material: 45# steel
		Drive power:5.5kw
	Rolling shaft material	45# STEEL
	Shaft diameter	90mm
	Roller material	GB-Cr15 with heat treatment
	Rolling station	15 stations
	Machine frame	Cast iron vertical structure
	Machine body	400# H steel welded
	Bearing	Chinese famous brand Harbin
	Work power	22kw
Control system	Frequency brand	Delta from Taiwan
Control system	PLC brand	Delta from Taiwan
Hydraulic system	Work type	Hydraulic

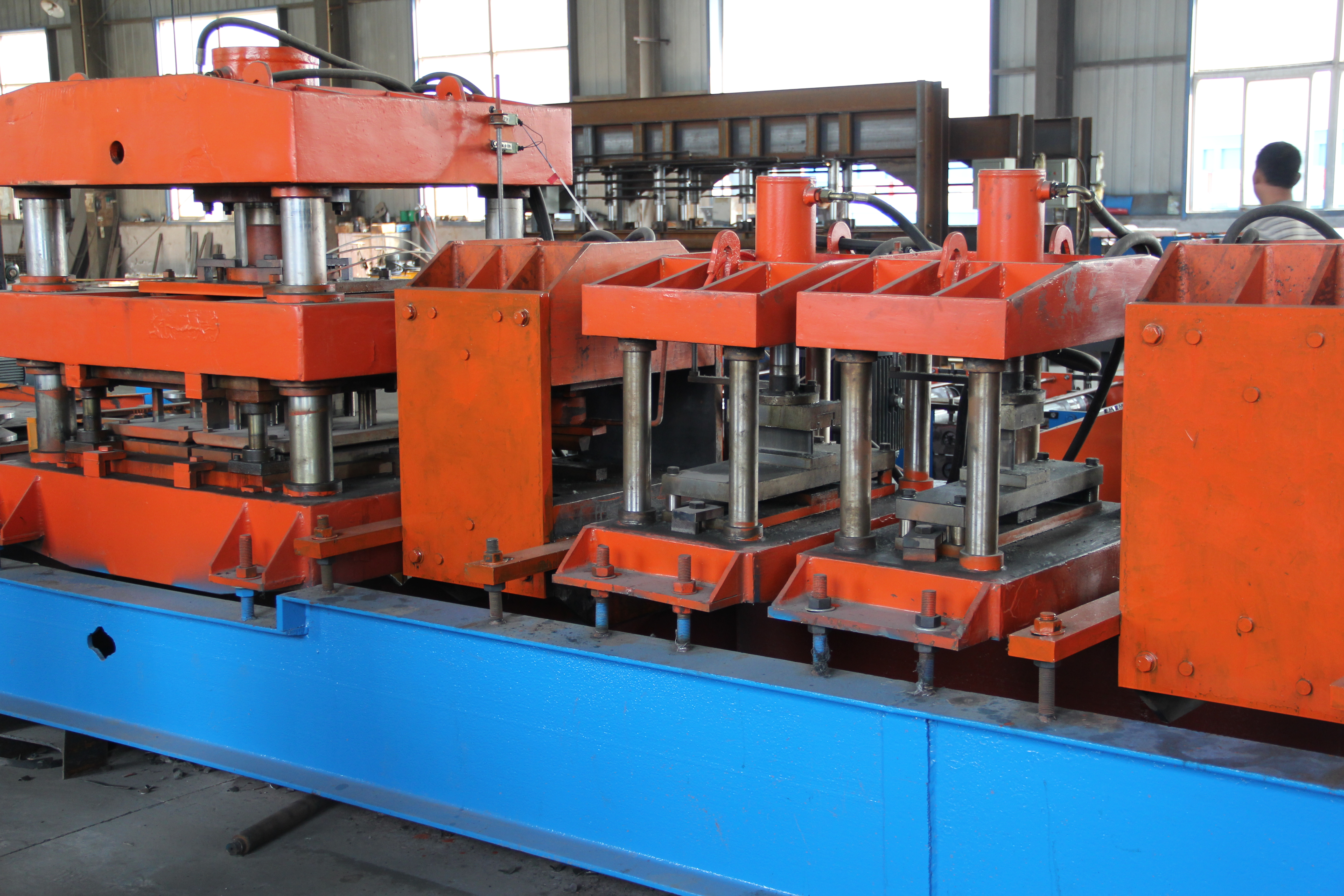

	Punch mode	Four pillar hydraulic powered punching system
	Driving method	By Cylinder
	Motor power	22kw
	Mold material	GB-Cr12
	Mold quantity	2 sets
	Punching frame	1 set
	Press power	80T
	Cutting length tolerance	±1.5mm
