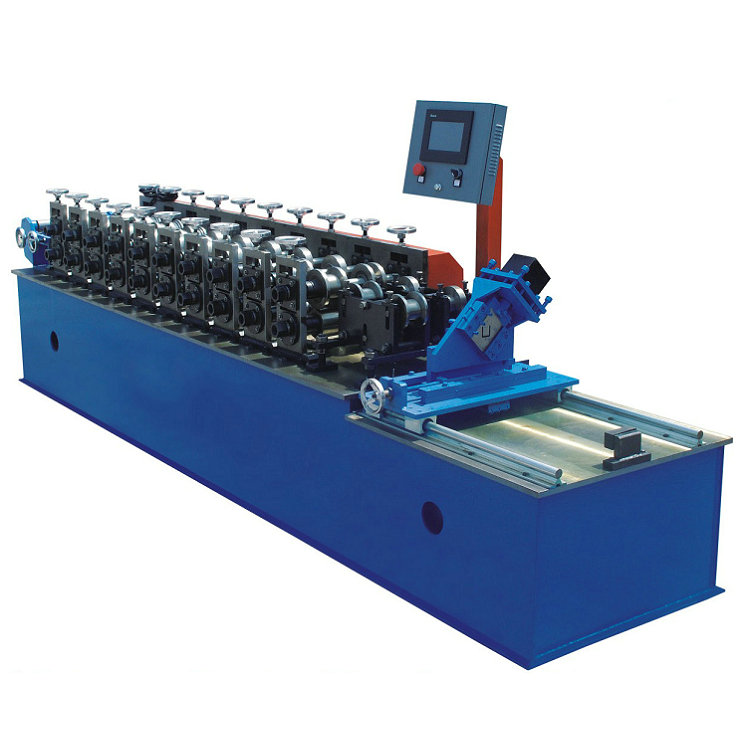

Drywall metal U track Roll Forming Machine

Features:

Drywall metal U track Roll Forming Machine is a cost effective, high efficiency and flexible production line for various sizes of U shape track profile for drywall frame system. All of the Accessory Lines like machine structure, cutting system, PLC control system, are custom designed and offer a variety of options for your specific application.

• This line can be automatic running by inputting the length and batches in the PLC system.
• The strong H beam base is treated to avoid the vibration when working.

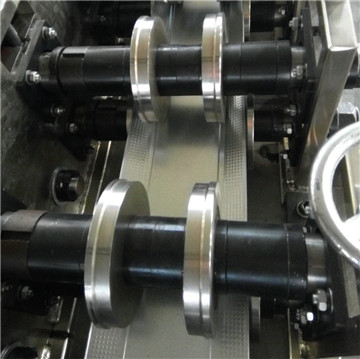

• All the rollers are hardness quenched to guarantee the life
• The human computer interface operate system will save human source to operate the production line

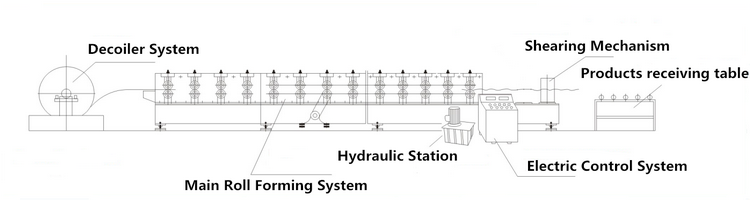

working flowing of Drywall metal U track Roll Forming Machine

Technical Parameters:

material with galvanized, pre-painted, aluminum thickness ranging from 0.3-0.8 mm
product speed of metal stud roll forming machine up to 25m/min
cut to any length by setting in PLC system
in-line hydraulic press for assemble holes on metal stud
size change over by horseshoe spacers between rollers
optional with flying cut-off for high product volume required, speed up to 50m/min
optional with in-line ink jet printer to add logo
optional with auto-stacker to minimal operator involvement
