useage of roller shutter door:

 For the roller shutter door making machine, it is a machine will make shutter door slats, Our machine can do thickness for 0.7-1.4mm, the shape will be design by your demand.
The shutter door is separated from the wall by the action of the wall, which consists of the curtain plate, the seat plate, the guide rail, the bearing, the reel, the box, the control box, the rollier shutter door machine, the stopper, the lintel, the manual quick release switch, And insurance devices and other parts of the composition, generally installed in the inconvenience to use the wall separated parts. Rolling doors for commercial facade, garage, shopping malls, hospitals, factories and mines and other public places or residential. Especially the larger openings, inconvenience to install the ground door of the place to play a convenient, fast opening effect.

For the roller shutter door making machine, it has many parts:
1. Decoiler the coil.
2.Feeder to the punching holes machine(it can make the shutter door slide cover with holes).

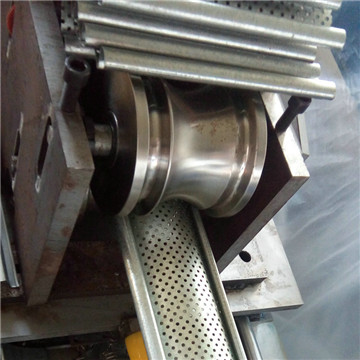

3.Roll forming part, for our mahcine, the forming speed will be 0-30m/min, it is asjustable. Generally we will make the Shutter door roll forming machine with gear drive, it will give machie a strong power to move.
4.Punching the lock holes. This part will together with cutting blade. When it cutting, the machine will punching the holes together.
5.Cutting part. We have two types of cutter for you choose,one is fly saw,another is hydraulic cutter.

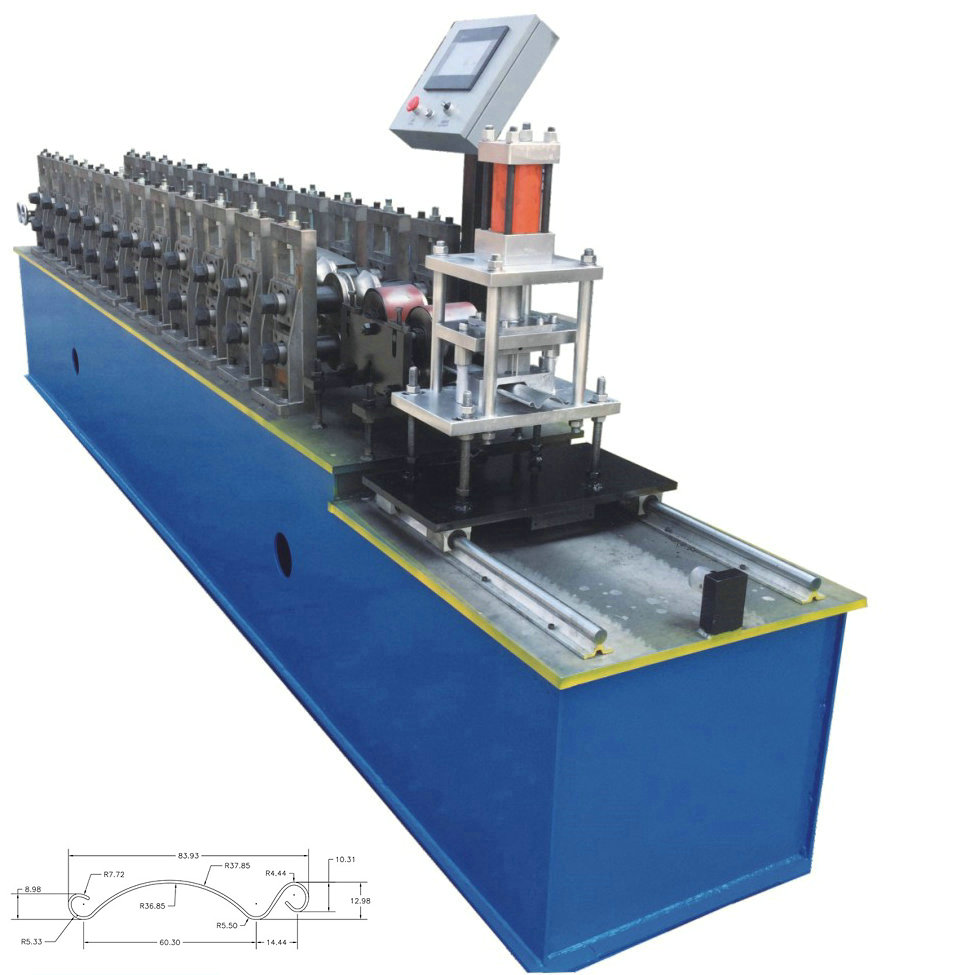

The technical details of roller shutter door making machine:

Raw material: galvanized steel
Material thickness: 0.7-1.2mm (depends on customer's request)
Machine work sped: 20m/min(8pcs/min,2.5m/pcs)
Rolling station: 12 stations
Roller material: GB-Cr12
Transmission: by gear
Drive motor: 4kw
Bearing brand: Harbin
Machine body frame: cast iron vertical structure
Cutting type: hydrualic
Cutting power: 4kw
Cutting mode: auto tracking cutting
Control system: PLC
Control station brand: Delta

The product we can do :

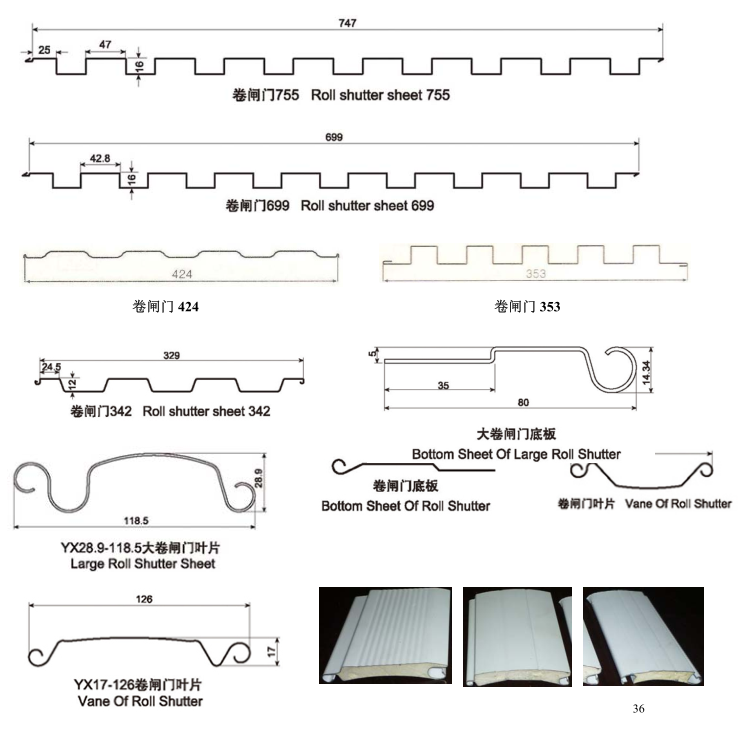

As a manufacturers,we can make the High Quality roller shutter door making machine  by customer`s demand, with a profile drawing and thickness, we can do design the machine quickly.Until now,we can do many kinds of roller shutter door making machine,such as shutter door machine with perforation and holes,Australian-style shutter door and shutter door slat. Here are some profile drawings for you reference.

We can also provide you door guide rails roll forming machine.
