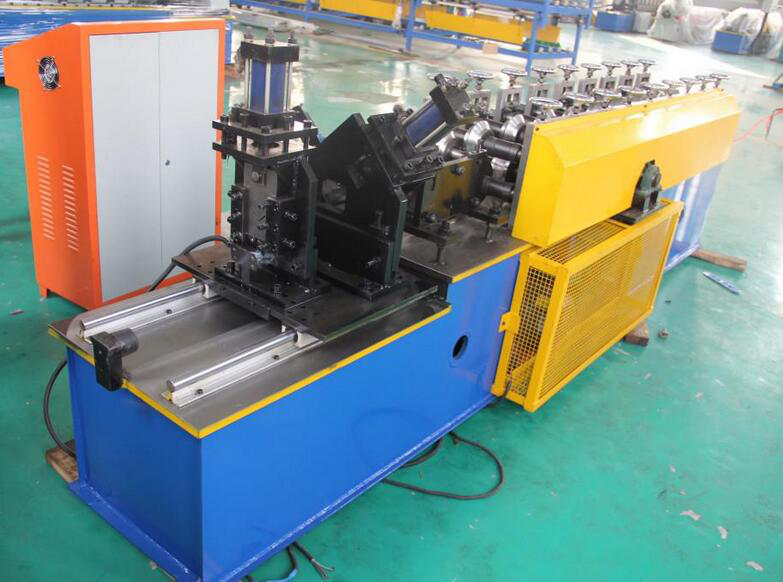

slotted angle roll forming machine

The final products of slotted angle roll forming machine  are a new building material, Wall angle light keel is one of the keel used in ceiling participation. It has the function of anti-shock, anti- heat insulation, which is quite popular in the market. The wall angle roll forming machine is developed to make those wall angle in batch for huge production.  It can make the corner looks smoother and speed up the construction period.

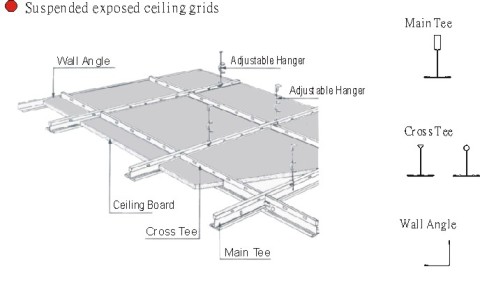

The products of Corner Bead Roll Forming Machine are commonly used one for drywall corner bead protection. Wall angle together with main tee, cross tee are the main parts of Suspended ceiling system. A suspended ceiling is a type of finish system that is hung below the ceiling structure within a room or building. It may be suspended from a roof or ceiling deck, which consists of structural framing joists that support loads above and below the deck.

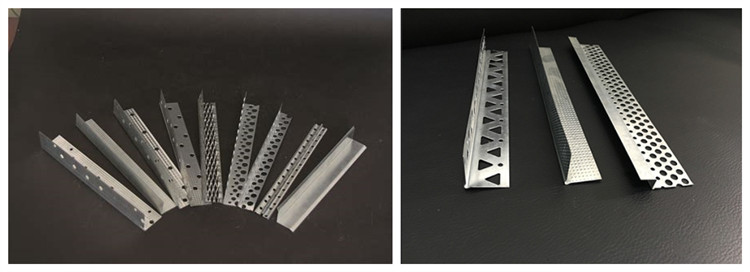

There are many types of wall angles, some are with holes, some are with embossing. The multihole flanges of the metal bead for effective compound adhesion. The small nose bead for corner lines shape. And it is easy to install with nails and other fasteners. Wall angles function as a wall support and seismic bracing for cable runway.

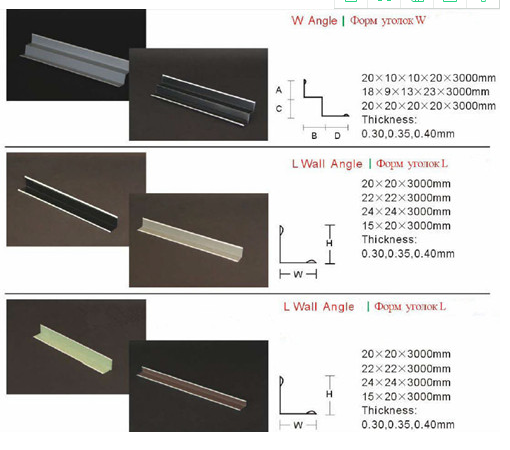

here are some drawings for your reference

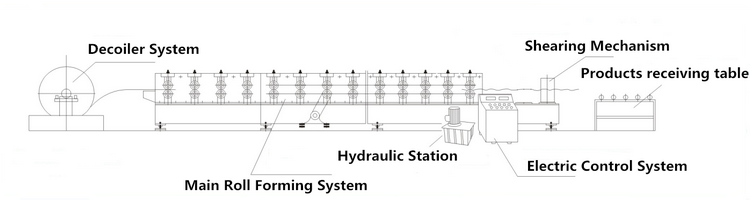

working flow of slotted angle roll forming machine

Main technical parameters of slotted angle roll forming machine:

Length of main part:       3500х800х1400
Weight of main part:       3 tons
Voltage :                             380V/50HZ3Phase (as customer`srequest)
Roller fixer :                     Guide column
Frame thickness:           20mm
Drive mode:                     gear
Material of rollers:         GCr12MoV
Material of shafts:          45# steel with tempering
Diameter of shafts:        φ40mm
Number of rollers:          9 rollers
Main power:                     3 kW

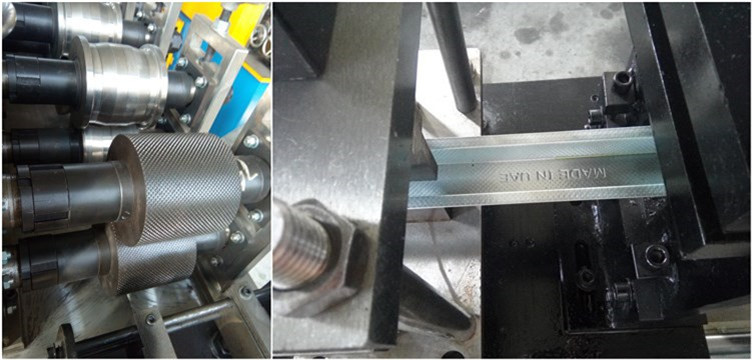

For additional function if you need like pressing company logo, printing production date and others, we can also make for you.
