Features:

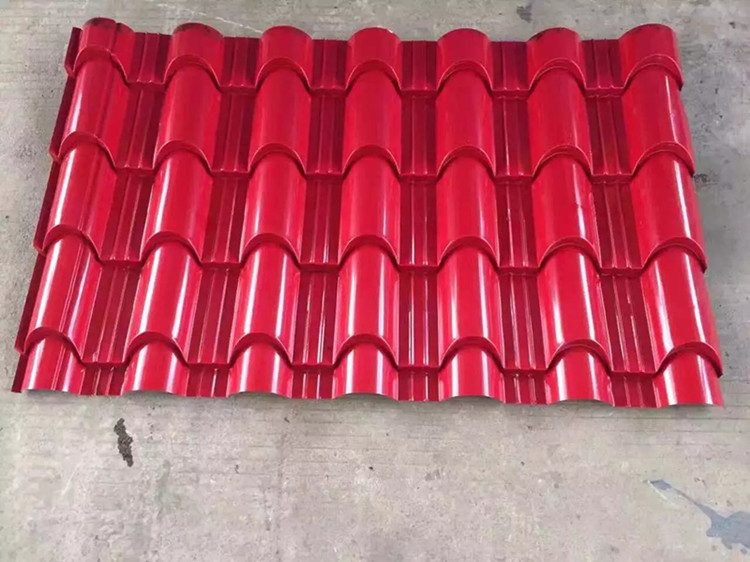

Steel glazed tile roof sheet are the new substitutes for traditional clayey,concrete tiles. It is popular with the features such as low cost, short building period, re-cycle use and elegant appearance.

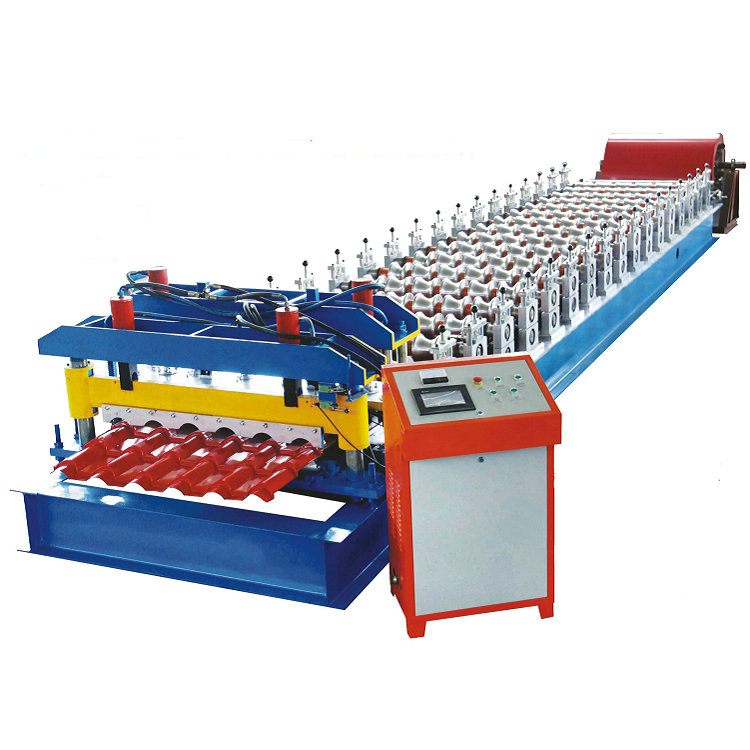

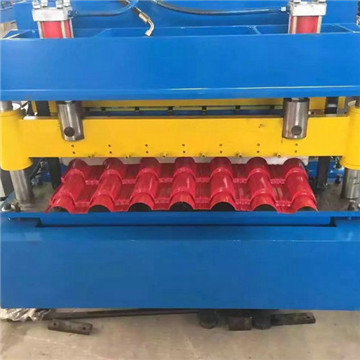

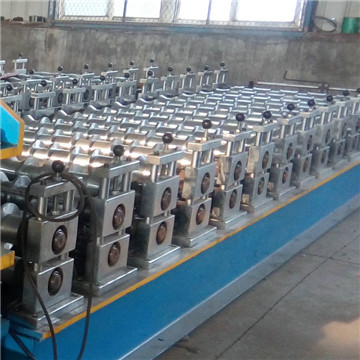

This glazed tile making machine adopts memorial arch structure. Rollers are fixed by independent stations which make the main forming machine more stable and long time using .It adopts touch screen control box through the man-machine interface, convenient operation, good appearance, consistent with the whole equipment.
Technical Parameters:
Raw material: Galvanized steel coil or color coated steel coil
Material thickness: 0.3-0.8mm
Roll forming speed: 2-4m/min
Material of Roller: 45# steel with tempering
Shaft Material: 45# steel with tempering
Drive type: chain
Motor Power:  4 KW
Material of blades Cr12 quenched
Material of cutting dies:  Gcr12
Hydraulic power for cutting:  4KW
