Customized metal steel round and square rain water gutter making rolling machine



Application



The customized matal steel round and square rain water gutter making rolling machine can produce the round gutter or square gutter.

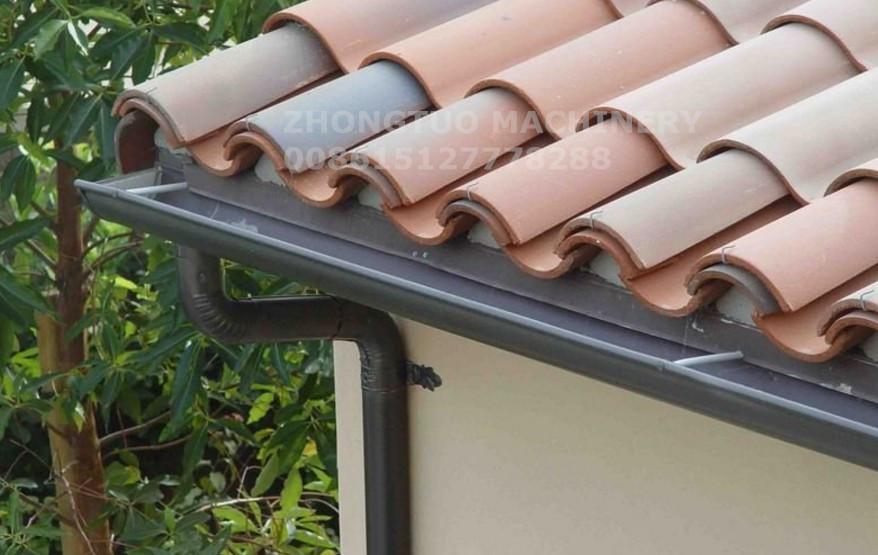

Gutter is a part of rain collection system. There have a transverse device to drain away water on some building roof eave.
The gutter can gather rain and guide to the downspout pipe. The metal material can choose copper, colored aluminum, stainless steel.
Among these, copper is the most normal material as it anti -rusty, long service life, not fade like color steel and not simple color like PVC.
We can design the gutter roll forming machine with your guuter shape.

Metal gutter feature:

1.Can organizing and guiding the water and guiding into the downpipe regularly.
2.Protecting the eave to prevent rusty when rainning.
3.Making the building looks like more artistic.
4.It can prevent from dripping, prevent perennial dripping from penetrating and damaging the ground, and protect the ground.

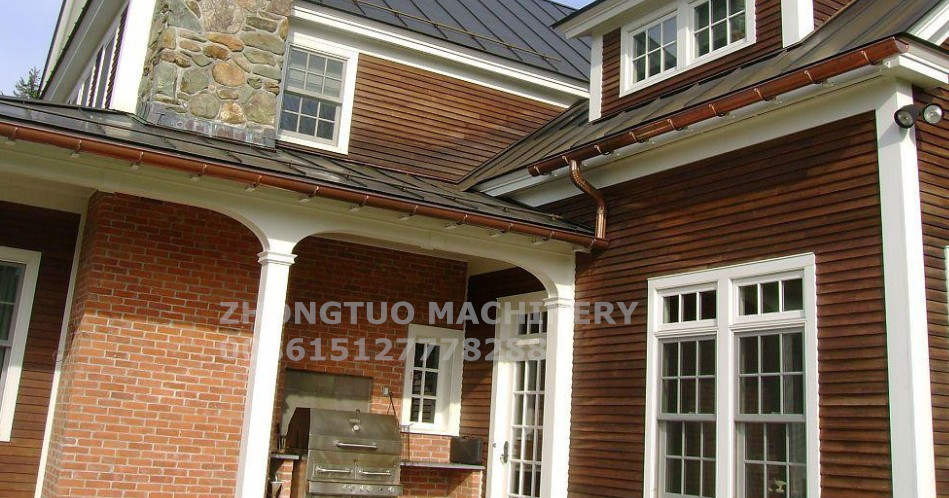

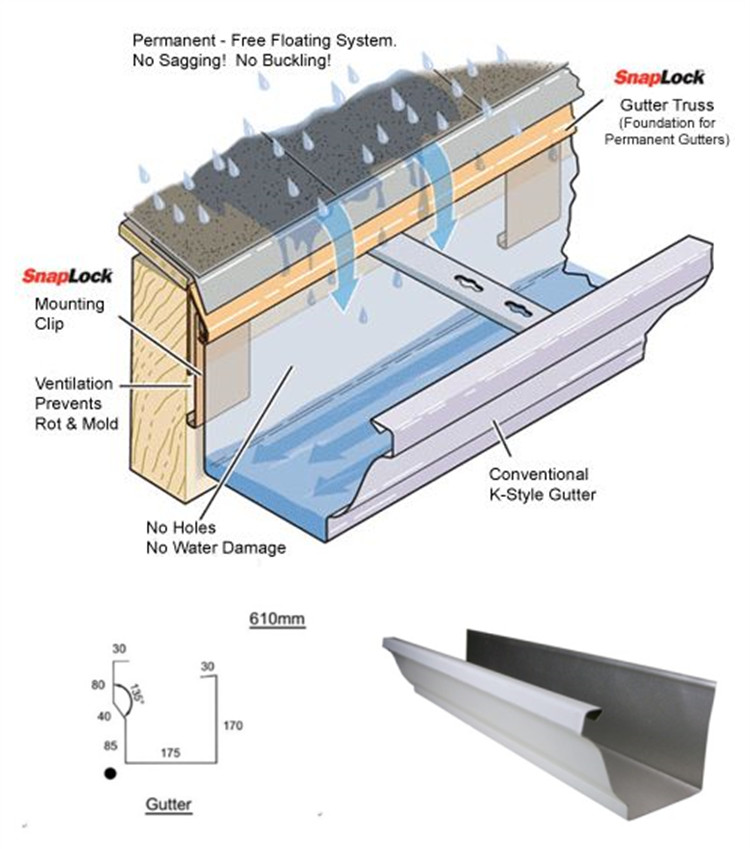

This is a rain collect system sketch map and the overall of gutter roll forming machine.
 And you can see how the metal gutter collect rainwater in a downspout system.

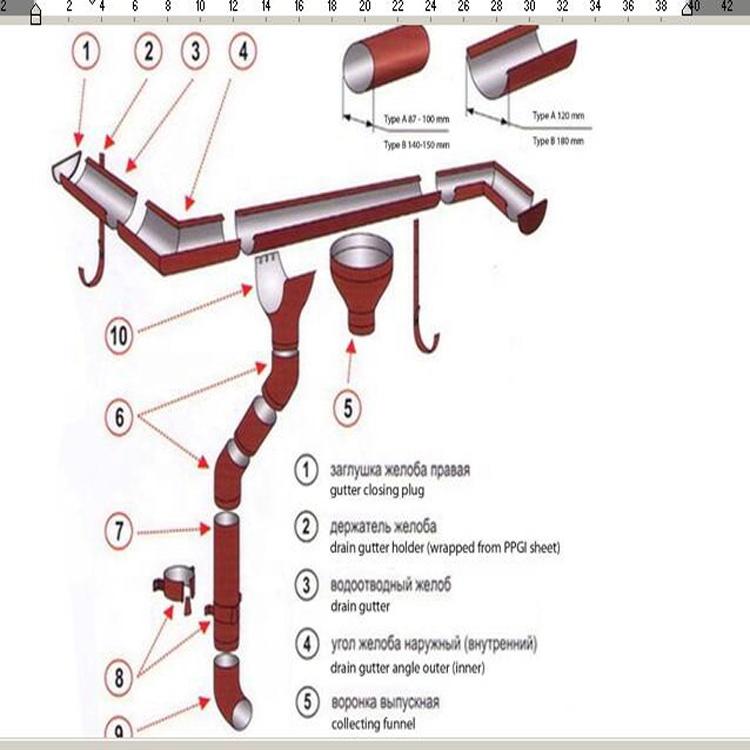

Becides metal gutter, also have many accessiories in there. We can provide these accessiories if you need.

Different buildings may need different design of gutter, Metal gutters have many kinds design and dimensions of section.
Both have K type, curve Occident contemporary style, and the half circle of Spanish style.

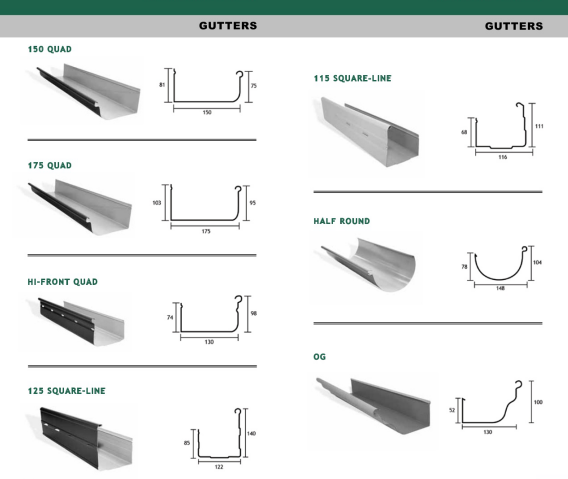

If you don't have profile drawing, we can recommand you some model profile, such as below dimensions of section.

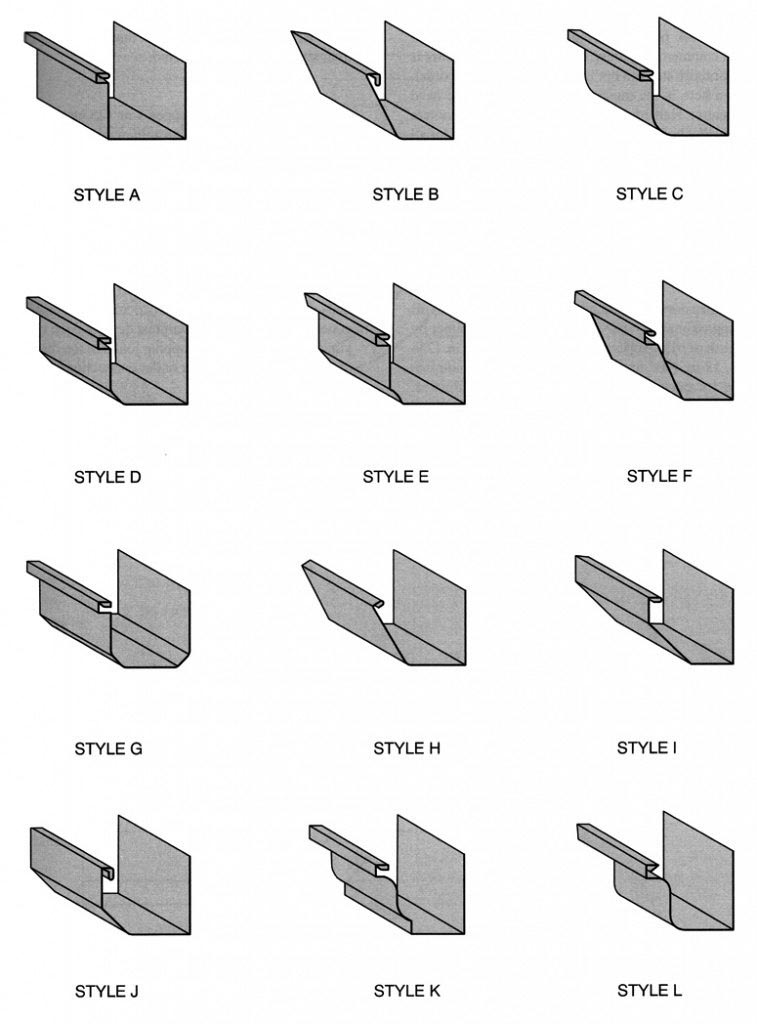

You can see there are some 3D effect pictures, once you provide shape and size, we can drawing the effect picture for you.






These are the finished square gutter that produced in customer's factory. The material is colored aluminum.
At the right photo, this is a cost-effctive chains drive machine, if you buy our machine, a extra set of chains will give you for free.

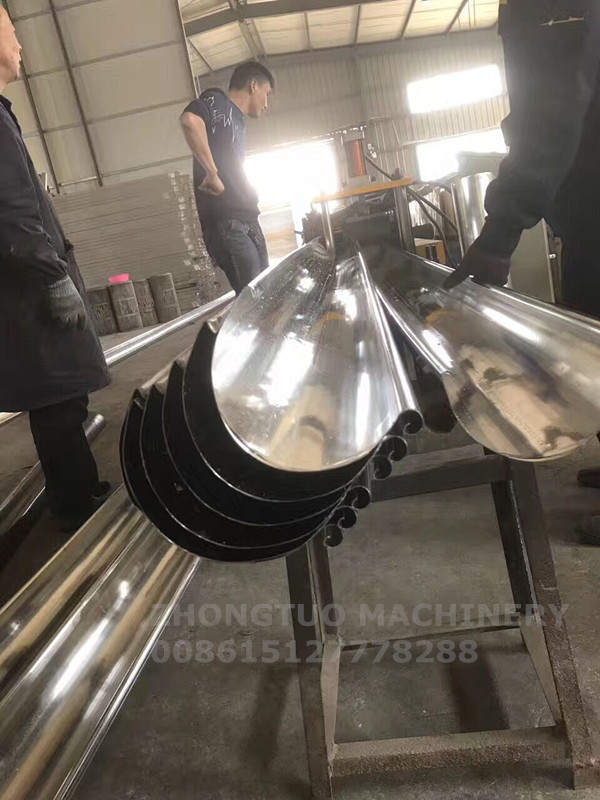

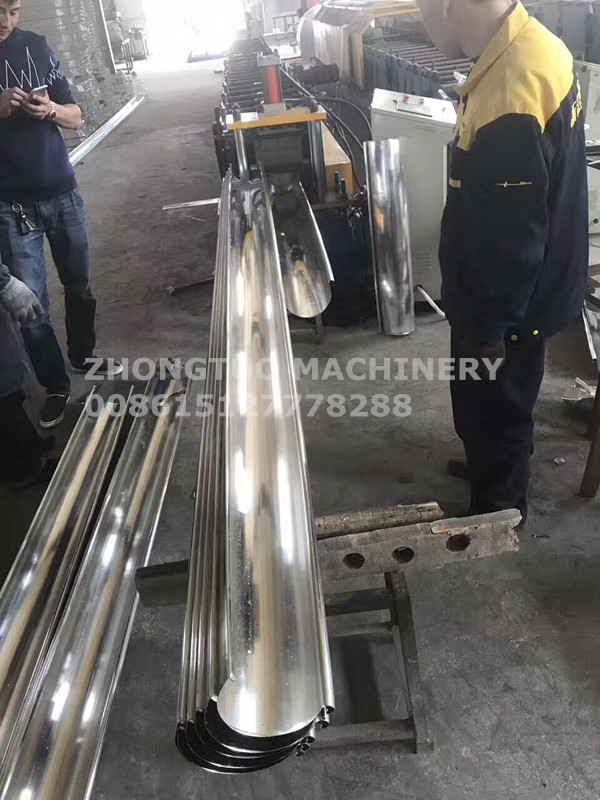

Here you can see the finished round gutter photos that produce in customer's factory, the finished product are in well shape.

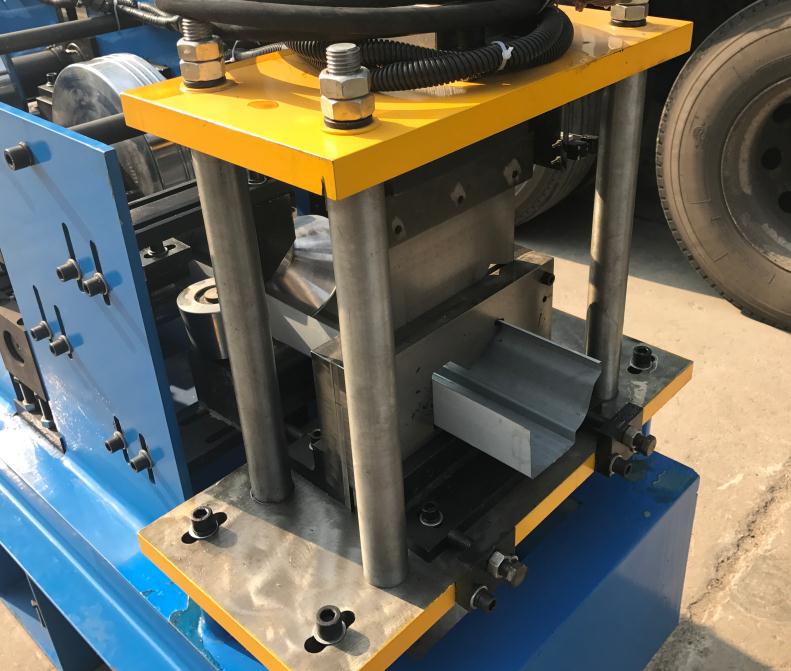

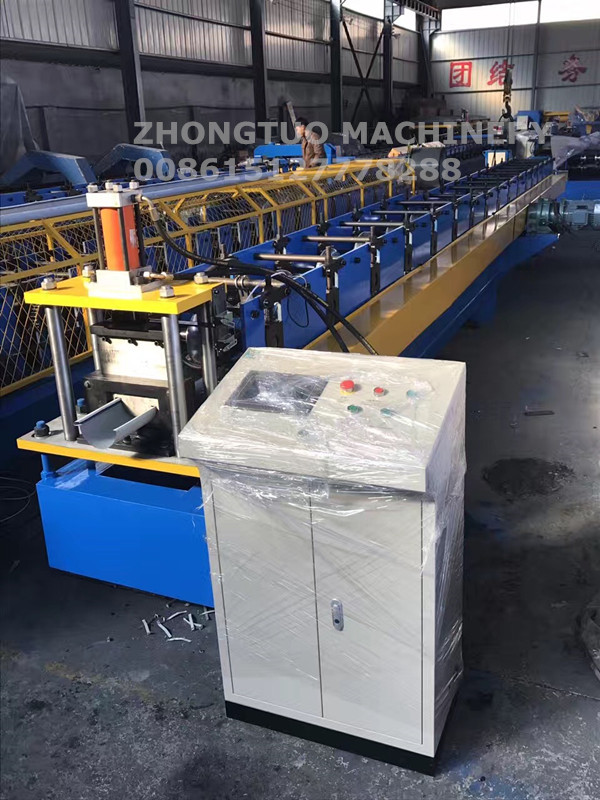

After cutting, there is a product collect table in front of the hydraulic cutting system.







Technical parameter



Series	Details	Paremeter
Product	material	Stainless steel/ aluminum sheet/PPGI
	thickness	0.3-0.6 mm
Decoiler	loading capacity	3T
	work type	Manual
Main roll former	work speed	0-15m/min
	roller station	16 stations
	roller material	45# steel with chormed treatment
	roller shaft material	45# steel with quenched treatment
	roller diameter	70 mm
	main motor power	5.5 kw
	structure	Middle plate welded structure
Hydraulic cutting	cutting material	Gcr12 (HRC58°-62°)
PLC control system	PLC brand	DELTA(original)
	frequency brand	Mitsubishi
Product collect table	structure	Square pipe welded structure

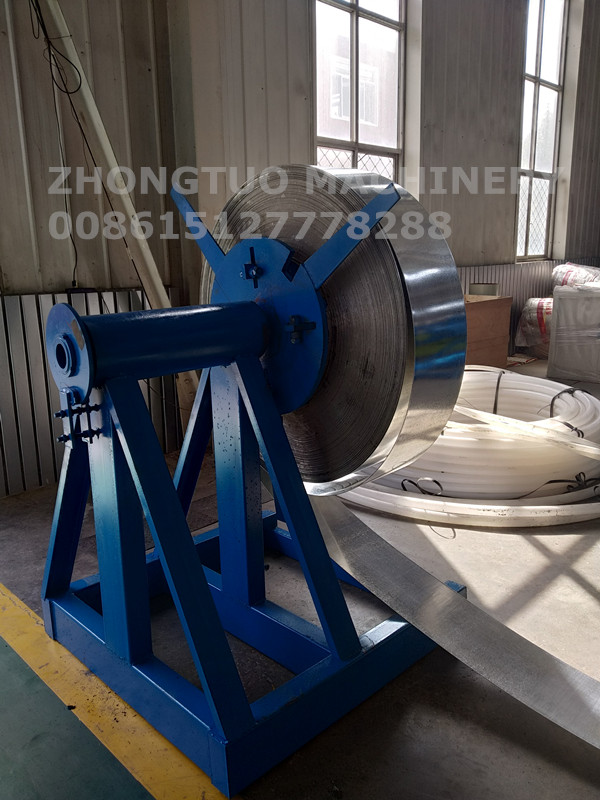

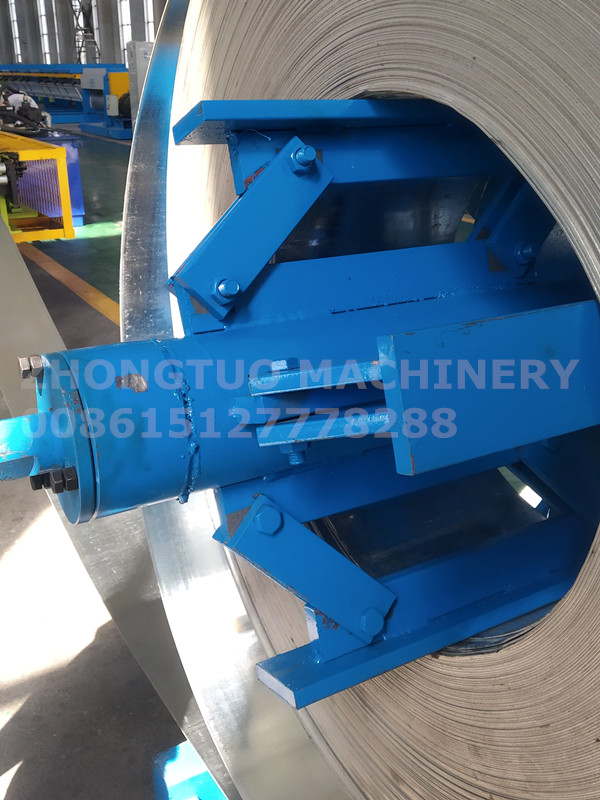

Here is a 3 Tons manual decoiler,it can uncoiling the coil and manualy feeding the material into the main roll former.
The manual decoiler hold outward the coil by four connecting rod.
Its benifit is shown in lower cost, and there is so have hydraulic decoiler for you to choose.

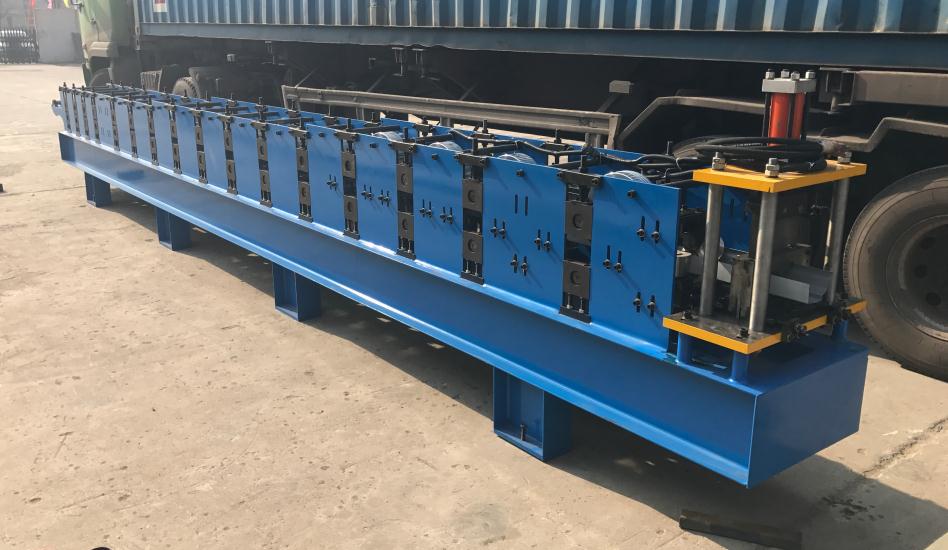

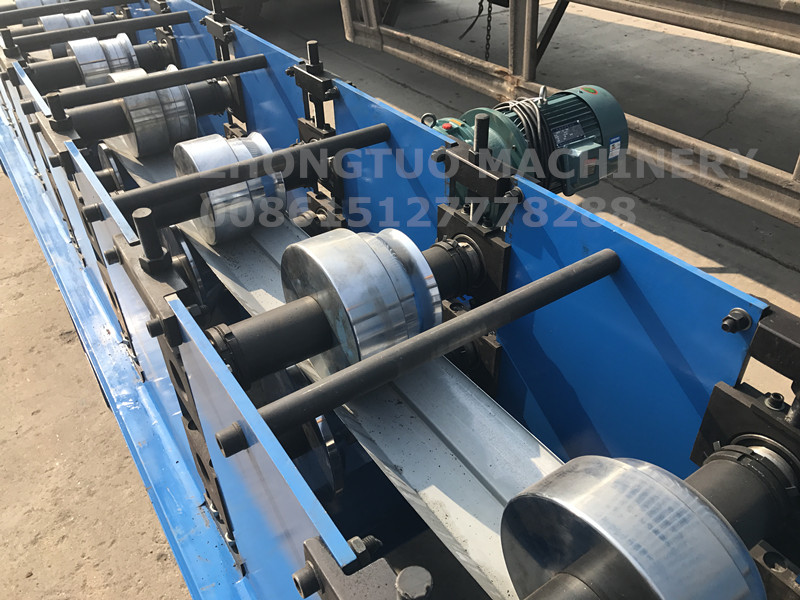

The main roll former, our machine deisn type will according to your drawing and special demand.

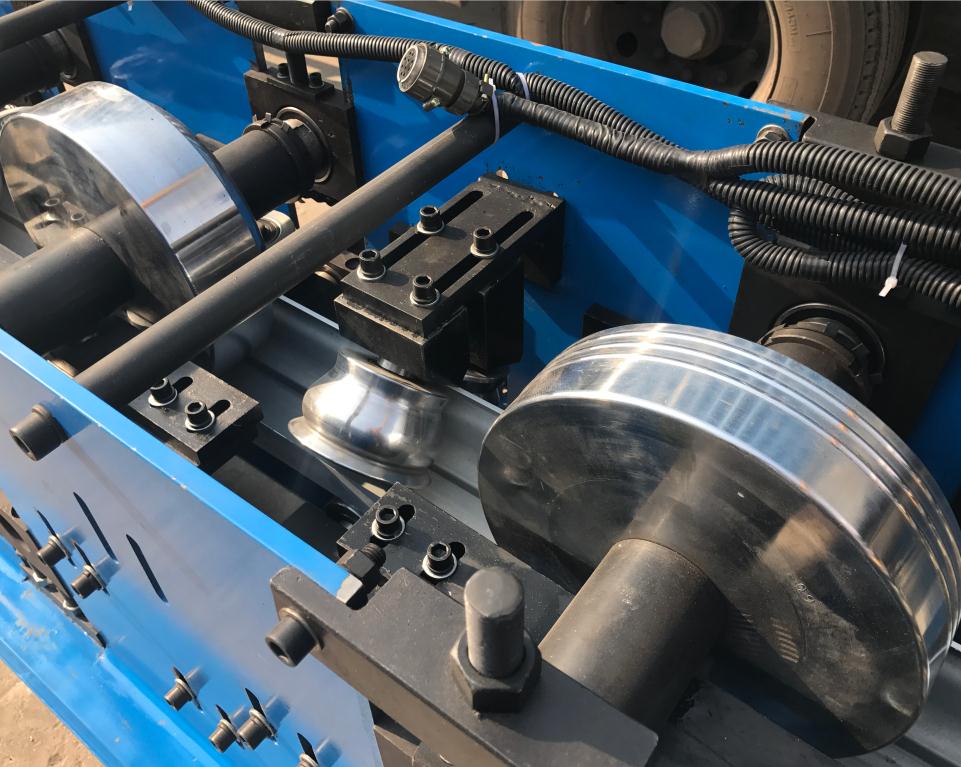

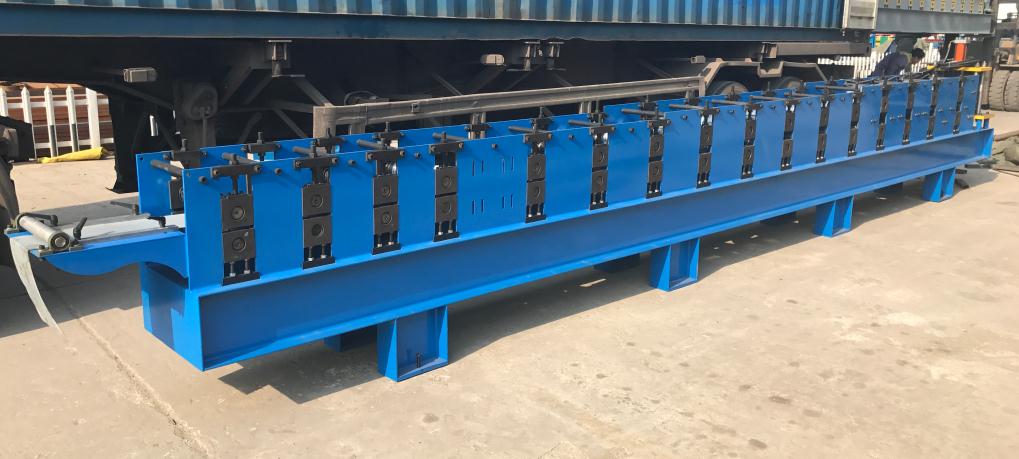

The below machine is middle plate welded structure, the rollers is 45# steel with chromed treatment.
High quality rollers and roller shaft will ensure the product can be well forming and not deformed.



After-sales service:

A: Warranty: One year ,and we will provide the technical support for the whole life.
B: Training and service: the seller will arrange the technician from Mumbai to customer’s factory to install the equipment and do the training for local workers, once the buyer receive the machines.The buyer will arrange the transportation and accommodation for the technician, and daily salary is USD80 per person, Besides, need 2-3 workers to help our technician for installation and commissioning.
C: we will provide you the layout for installation in English.
